Why Choose the ABB 1M2A Distribution Panel 1PW?

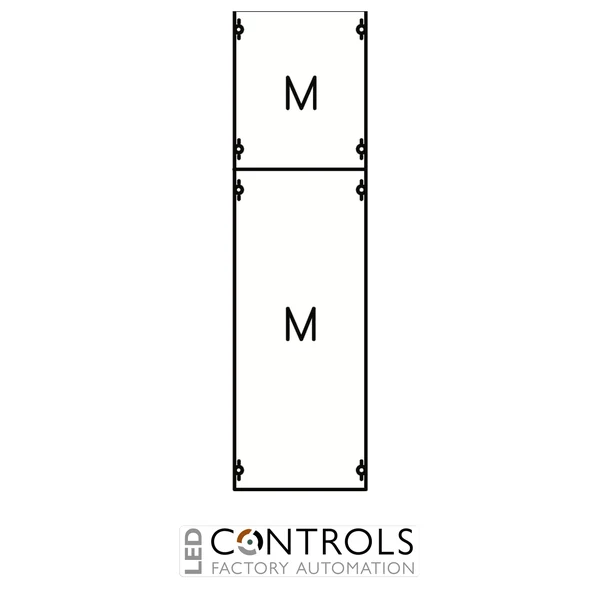

The ABB 1M2A is a professional 1-panel-width (1PW) distribution panel with mounting plate designed for internal expansion of compatible ABB modular distribution cabinets. Supplied under ABB order code 2CPX037626R9999, the 1M2A forms part of the ABB CombiLine N internal expansion system and provides a robust mounting platform for electrical equipment in professional sub-distribution assemblies.
The 1M2A has a 6 GU / 900 mm height and a 1PW / 250 mm width, providing 72 PLE within the distribution field. It incorporates a 2 mm sheet-steel mounting plate that can be continuously adjusted in depth using the appropriate depth-angle arrangement, allowing equipment positioning to be adapted to the requirements of the installation.
The distribution panel is mounted on EDF profile rails, which are included in the scope of supply, and is suitable for compatible cabinets from 120 mm depth. Closed plastic covers finished in RAL 7035 light grey use practical 90° press-and-turn closures, while the mounting-plate arrangement provides a versatile foundation for equipment that does not require conventional DIN-rail mounting.
Key Advantages
- Genuine ABB CombiLine N 1PW distribution panel for professional sub-distribution systems.
- Integrated 2 mm sheet-steel mounting plate for secure equipment installation.
- 6 GU / 900 mm-high configuration with 72 PLE.
- Mounting plate can be continuously adjusted in depth using the appropriate depth-angle system.
- EDF profile rails included for straightforward integration into compatible ABB cabinets.
- Closed plastic covers provide a neat and protected installation area.
- 90° press-and-turn closures allow convenient access during installation and maintenance.
- Suitable for compatible cabinets from 120 mm depth.
Key Features
- ABB 1M2A distribution panel.
- ABB order code 2CPX037626R9999.
- 1-panel-width (1PW) configuration.
- 6 GU / 900 mm overall height.
- 250 mm field width.
- 72 PLE installation capacity.
- 2 mm sheet-steel mounting plate.
- Continuously depth-adjustable mounting plate arrangement.
- Closed plastic covers in RAL 7035.
- 90° press-and-turn cover closures.
- EDF profile rails included in the scope of supply.
- No DIN rails or N/PE terminals supplied.
Flexible Equipment Mounting for ABB Distribution Systems
Mounting-plate distribution panels such as the ABB 1M2A provide a versatile installation surface for electrical equipment that cannot be accommodated conveniently on standard DIN rails. The robust sheet-steel plate allows components to be positioned according to the requirements of the assembly, while its adjustable depth helps optimise available cabinet space.
The 1M2A is designed as part of ABB's coordinated internal expansion system. Distribution panels or field combinations are matched to the grid units of the cabinet in which they are installed, while the included EDF profile rails simplify mechanical integration into compatible ABB modular cabinet systems.
Typical Applications
- ABB CombiLine N electrical distribution systems.
- Commercial and industrial sub-distribution cabinets.
- Mounting of electrical control and distribution components.
- Equipment requiring mounting-plate rather than DIN-rail installation.
- Building-services electrical distribution systems.
- Standalone and row-mounted switching cabinets.
- Professional switchboard and panel-building projects.
