Why Choose the ABB 2M2A Distribution Panel 2PW?
The ABB 2M2A is a professional 2-panel-width (2PW) distribution panel with mounting plates designed for internal expansion of compatible ABB electrical distribution cabinets. Supplied under ABB order code 2CPX037627R9999, the 2M2A forms part of ABB's modular internal expansion system and provides a versatile mounting platform for electrical equipment in professional sub-distribution assemblies.
The 2M2A has a 6 GU / 900 mm height and a 2PW / 500 mm width, providing 144 PLE of installation capacity. Its mounting plates can be variably adjusted in depth using the ED33 deep angle piece, allowing the position of installed equipment to be adapted to the available cabinet depth and application requirements.
The distribution panel is designed for compatible cabinets with a minimum depth of 120 mm and is supplied with EDF profile rails for integration into ABB cabinet systems. Its cover arrangement consists of a 300 mm upper section and 600 mm lower section, creating a structured installation area for professional switchboard and sub-distribution construction.
Key Advantages
- Genuine ABB 2PW distribution panel for professional electrical distribution assemblies.
- 144 PLE installation capacity provides a spacious equipment mounting area.
- 6 GU / 900 mm-high configuration for compatible modular cabinets.
- Mounting plates are variably adjustable in depth using the ABB ED33 deep angle piece.
- EDF profile rails included for straightforward integration into compatible ABB cabinet systems.
- 2PW / 500 mm width provides increased mounting space for larger equipment arrangements.
- Suitable for compatible cabinets with a minimum depth of 120 mm.
- Modular construction supports flexible commercial and industrial distribution projects.
Key Features
- ABB 2M2A distribution panel.
- ABB order code 2CPX037627R9999.
- 2-panel-width (2PW) configuration.
- 6 GU / 900 mm overall height.
- 500 mm panel width.
- 144 PLE installation capacity.
- Mounting plates for flexible electrical equipment installation.
- Mounting plates variably adjustable in depth via ED33 deep angle pieces.

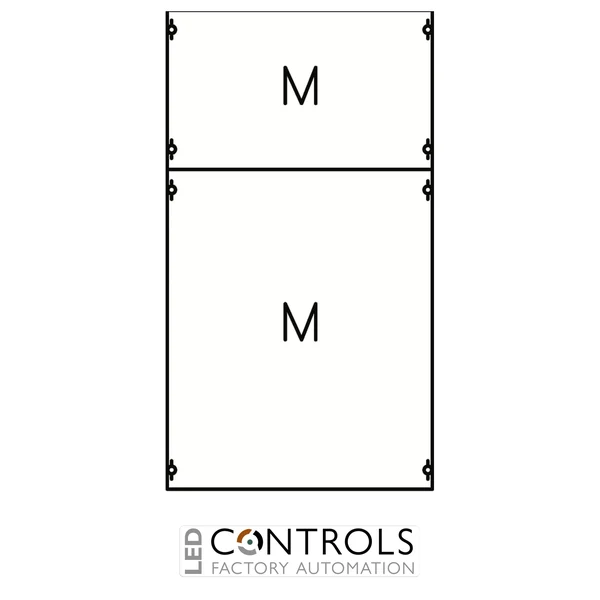

- 300 mm upper and 600 mm lower cover arrangement.
- EDF profile rails included in the scope of supply.
- Designed for cabinets from 120 mm depth.
- Suitable for coordinated ABB internal expansion systems.
Flexible Equipment Mounting for ABB Distribution Systems
Mounting-plate distribution panels such as the ABB 2M2A provide a versatile installation platform for electrical equipment that cannot be conveniently accommodated using conventional modular DIN-rail arrangements. The adjustable mounting plates allow equipment depth to be adapted to the installation, helping panel builders make effective use of available cabinet space.
The 2M2A is designed as part of ABB's coordinated internal expansion system. Distribution panels or field combinations are matched to the grid units of the cabinet in which they are installed, while ABB specifies that two fields or field combinations are installed one above the other in standalone and row switching cabinets. Included EDF profile rails simplify mechanical integration into the appropriate cabinet structure.
Typical Applications
- ABB electrical sub-distribution systems.
- Commercial and industrial distribution cabinets.
- Mounting of electrical control and distribution equipment.
- Components requiring mounting-plate installation.
- Building-services electrical distribution systems.
- Standalone electrical switching cabinets.
- Row-mounted switchgear cabinets.
- Professional switchboard and panel-building projects.
