Why Choose the ABB 1B2A Distribution Panel?

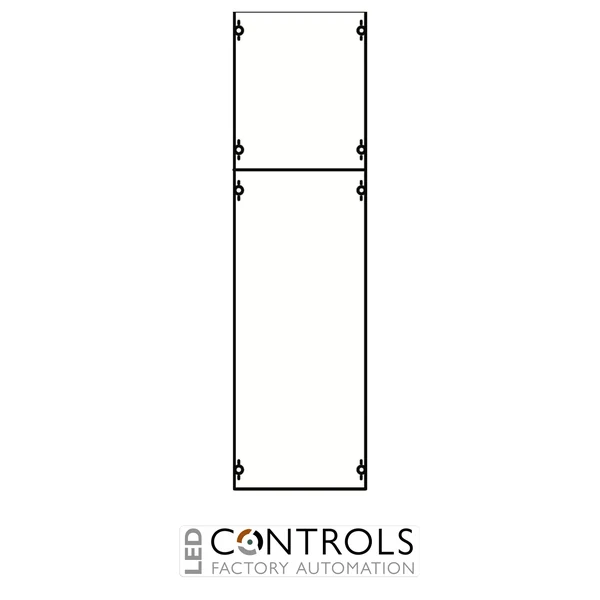

The ABB 1B2A is a 1 panel-width (1PW) distribution panel designed as an internal expansion field for touch protection within compatible ABB electrical distribution cabinets. Mounted on EDF profile rails, it provides a coordinated solution for creating a closed, protected internal section within professional sub-distribution assemblies.
The 1B2A has a 6 grid-unit (6GU) configuration corresponding to a height of 900 mm, with a field width of 250 mm and capacity designation of 72 space units (PLE). Its closed plastic covers provide touch protection and feature practical 90° push-turn fasteners.
Finished in RAL 7035, the ABB 1B2A can be installed in compatible cabinets from 120 mm depth. The required EDF profile rails are included, providing a coordinated mounting arrangement for ABB cabinet systems.
Key Advantages
- Purpose-designed 1PW distribution panel for touch protection.
- 6GU / 900 mm installation height.
- 250 mm field width with 72 space units (PLE).
- Closed plastic covers help provide effective touch protection.
- 90° push-turn fasteners provide convenient cover access.
- EDF profile rails included for installation in compatible ABB cabinets.
Key Features
- ABB internal expansion distribution panel.
- 1 panel width (1PW).
- 6 grid units (GU).
- 900 mm height.
- 250 mm field width.
- 72 space units (PLE).
- Mounted on EDF profile rails.
- Designed for touch protection.
- Closed plastic cover design.
- 90° push-turn cover fasteners.
- RAL 7035 finish.
- Suitable for compatible cabinets from 120 mm depth.
Reliable Touch Protection for Electrical Distribution Systems
Touch-protection fields help create safe, organised internal arrangements within electrical distribution cabinets by covering sections of the installation and reducing direct access to internal electrical equipment. A coordinated internal expansion system also supports consistent cabinet construction and servicing.
The ABB 1B2A combines a 900 mm high, 250 mm wide field with closed plastic covers and included EDF profile rails. Distribution panels or field combinations are designed to use the same grid-unit arrangement as the cabinet in which they are installed, supporting coordinated ABB distribution assemblies.
Typical Applications
- Electrical sub-distribution cabinets.
- Touch-protected internal cabinet sections.
- ABB internal expansion systems.
- Commercial building distribution systems.
- Industrial electrical distribution assemblies.
- Professional panel-building installations.
