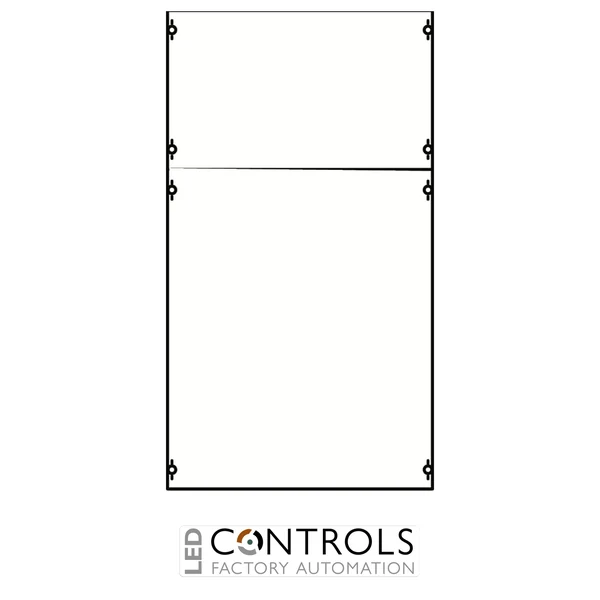

Why Choose the ABB 2B2A Distribution Panel?
The ABB 2B2A is a 2 panel-width (2PW) distribution panel designed as an internal fitting system for touch protection within compatible ABB electrical distribution cabinets. Mounted on EDF profile rails, it provides a coordinated closed field for professional sub-distribution assemblies.
The 2B2A has a 6 grid-unit (6GU) configuration with a height of 900 mm, width of 500 mm and depth of 120 mm. It provides 144 space units and uses closed plastic covers to form a protected internal installation area.
Finished in RAL 7035, the ABB 2B2A uses practical 90° press-and-turn closures and can be installed in compatible cabinets from 120 mm depth. The required EDF profile rails are included, providing a coordinated mounting solution for ABB distribution systems.
Key Advantages
- Purpose-designed 2PW distribution panel for touch protection.
- 6GU / 900 mm installation height.
- 500 mm panel width with 144 space units.
- Closed plastic covers provide a protected internal field.
- 90° press-and-turn closures provide convenient cover access.
- EDF profile rails included for installation in compatible ABB cabinets.
Key Features
- ABB internal fitting distribution panel.
- 2 panel widths (2PW).
- 6 grid units (GU).
- 900 mm height.
- 500 mm width.
- 120 mm depth.
- 144 space units.
- Mounted on EDF profile rails.
- Designed for touch protection.
- Closed plastic cover design.
- 90° press-and-turn cover closures.
- RAL 7035 finish.
Reliable Touch Protection for Electrical Distribution Systems
Touch-protection distribution panels help create organised and protected internal arrangements within electrical cabinets by covering installation areas and limiting direct access to internal equipment. A coordinated internal fitting system also supports consistent cabinet construction, inspection and servicing.
The ABB 2B2A combines a 900 mm high × 500 mm wide field with closed plastic covers and included EDF profile rails. Distribution panels or field combinations must use the same grid-unit arrangement as the cabinet in which they are installed, supporting coordinated ABB distribution assemblies.
Typical Applications
- Electrical sub-distribution cabinets.
- Touch-protected internal cabinet fields.
- ABB internal fitting systems.
- Commercial building distribution systems.
- Industrial electrical distribution assemblies.
- Floor-standing and switchgear cabinet installations.
