Why Choose the ABB 1V23A Distribution Panel?

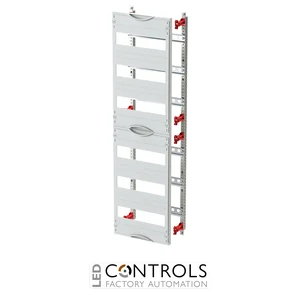

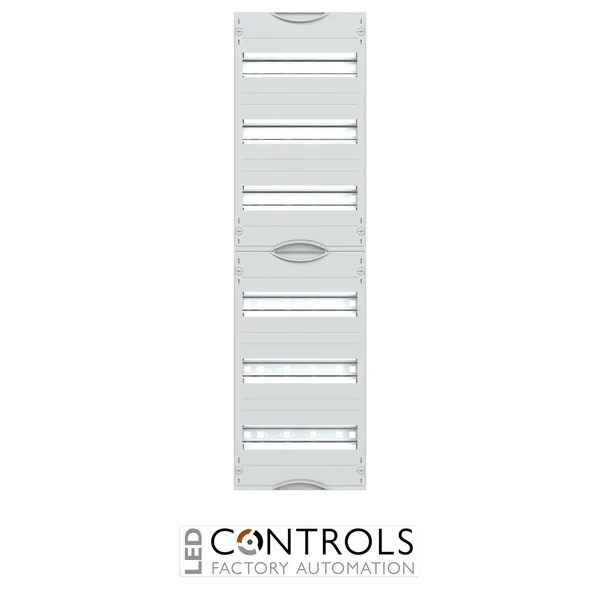

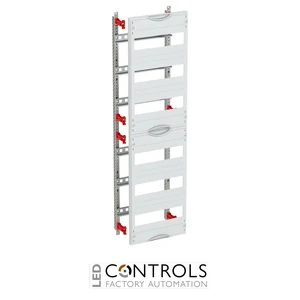

The ABB 1V23A is a professional 1PW distribution panel designed for DIN rail-mounted modular devices within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX037634R9999, it provides a structured internal expansion system mounted on EDF profile rails.
As part of the ABB DESUJ Sub Distribution range, the 1V23A provides a 6GU / 900 mm installation height with a 1PW / 250 mm field width and 72 space units. Its configuration combines a 450 mm top section with a 450 mm bottom section, supporting organised modular equipment installation.
The panel uses horizontal 35 × 15 mm DIN rails with a 125 mm row spacing for modular devices conforming to DIN 43880. Light-grey RAL 7035 plastic covers with equipment cut-outs and 90-degree push-turn fasteners provide protection and accessibility, while the EDF profile rails are included for straightforward cabinet integration.
Key Advantages
- Professional 1PW distribution panel for DIN rail-mounted modular devices.
- 6GU / 900 mm installation height for substantial equipment capacity.
- Provides 72 space units within a compact 250 mm-wide field.
- 125 mm row spacing supports organised device installation and wiring.
- Suitable for compatible ABB A, TG–SZ and U cabinet ranges.
- EDF profile rails are included for convenient system integration.
Key Features
- ABB 1V23A distribution panel.
- ABB order code 2CPX037634R9999.
- 1PW / 250 mm field width.
- 6GU / 900 mm installation height.
- 72 space units.
- 35 × 15 mm horizontal DIN rails.
- 125 mm row spacing.
- Light-grey RAL 7035 plastic covers with equipment cut-outs.
Structured DIN Rail Installation for Distribution Cabinets
Distribution panels such as the ABB 1V23A provide a coordinated internal platform for installing modular electrical devices in low-voltage distribution cabinets. Its six horizontal DIN rails and 125 mm row spacing provide an organised arrangement for equipment and wiring while maintaining convenient access for installation and servicing.
The 1V23A is supplied with EDF profile rails and is suitable for compatible cabinets from 120 mm depth. Distribution panels or field combinations should have the same grid-unit configuration as the cabinets in which they are installed, helping maintain a properly coordinated modular distribution system.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB sub-distribution assemblies.
- DIN rail-mounted protective devices.
- Modular switching and control equipment.
- Commercial and industrial distribution systems.
- Professional panel building and cabinet expansion.
