Why Choose the ABB 2V23A Distribution Panel?

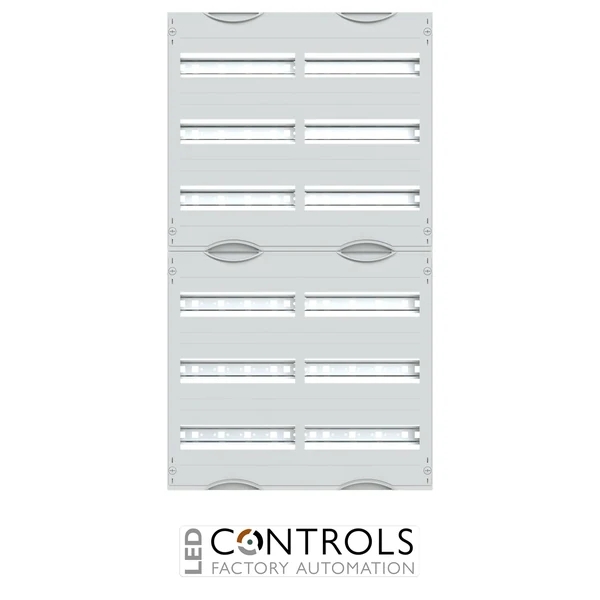

The ABB 2V23A is a professional 2PW distribution panel designed for DIN rail-mounted modular devices within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX037635R9999, it provides a structured internal expansion system mounted on EDF profile rails.
As part of the ABB DESUJ Sub Distribution range, the 2V23A provides a 6GU / 900 mm installation height with a 2PW / 500 mm field width and 144 space units. Its configuration uses a 450 mm top section and a 450 mm bottom section, supporting organised modular equipment installation.
The panel incorporates six horizontal 35 × 15 mm DIN rails, each providing 24 modular spaces, with a 125 mm row spacing. Light-grey RAL 7035 plastic covers with equipment cut-outs and 90-degree push-turn fasteners provide protection and convenient access, while the included EDF profile rails simplify integration into compatible cabinet systems.
Key Advantages
- Professional 2PW distribution panel for DIN rail-mounted modular devices.
- 6GU / 900 mm installation height for substantial equipment capacity.
- Provides 144 space units across six DIN rails.
- 500 mm field width supports high-density modular equipment installation.
- 125 mm row spacing helps maintain an organised equipment and wiring layout.
- EDF profile rails are included for straightforward cabinet integration.
Key Features
- ABB 2V23A distribution panel.
- ABB order code 2CPX037635R9999.
- 2PW / 500 mm field width.
- 6GU / 900 mm installation height.
- 144 space units.
- Six horizontal 35 × 15 mm DIN rails.
- 125 mm row spacing.
- Light-grey RAL 7035 plastic covers with equipment cut-outs.
Structured DIN Rail Installation for Distribution Cabinets
Distribution panels such as the ABB 2V23A provide a coordinated internal platform for installing modular electrical devices within low-voltage distribution cabinets. Its six horizontal DIN rails provide 144 space units, while the 125 mm row spacing supports an organised arrangement of equipment and associated wiring.

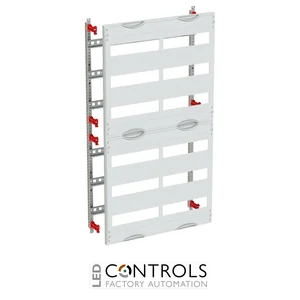

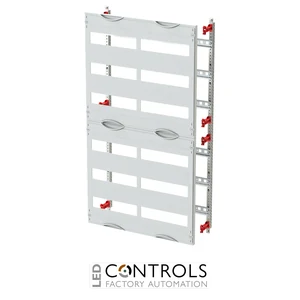

The 2V23A is supplied with EDF profile rails and is designed for compatible cabinets from 120 mm depth. Distribution panels or panel combinations should have the same grid-unit height as the cabinets in which they are installed, helping create a properly coordinated modular distribution system.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB sub-distribution assemblies.
- DIN rail-mounted protective devices.
- Modular switching and control equipment.
- Commercial and industrial electrical distribution systems.
- Professional panel building and cabinet expansion.
