Why Choose the ABB 1V23KA Distribution Panel?
The ABB 1V23KA is a 1 PW distribution panel for DIN rail-mounted devices and terminal blocks, designed for structured internal installation in compatible ABB low-voltage distribution cabinets. Mounted on ABB EDF profiles, it provides a coordinated internal framework for modular electrical equipment and terminal assemblies.

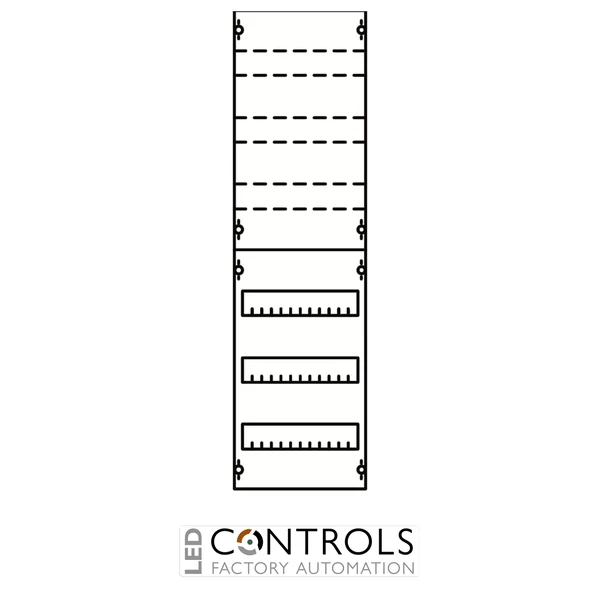

The 1V23KA has a 1 PW field width of 250 mm and a 6 GU height of 900 mm, providing 72 space units. Its configuration combines a 450 mm modular-device section with a 450 mm terminal section, making it suitable for installations that require both DIN rail equipment and organised conductor termination within one field.
The panel uses 35 × 15 mm DIN rails with perforations for wire holders and a 125 mm row spacing. Plastic covers with equipment cut-outs, a 90° push-turn closure and RAL 7035 finish provide a coordinated front arrangement, while the EDF profile rails are included for installation in compatible ABB cabinet systems.
Key Advantages
- Dedicated 1 PW distribution panel for compatible ABB enclosure systems.
- Designed for both DIN rail-mounted devices and terminal blocks.
- Provides 72 space units within a 6 GU panel configuration.
- Combines 450 mm device and 450 mm terminal sections.
- 125 mm row spacing supports an organised equipment layout.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included for straightforward cabinet integration.
Key Features
- ABB CombiLine N internal distribution system.
- Model 1V23KA.
- 1 PW field width.
- 6 GU / 900 mm height.
- 72 space units.
- Three DIN rails.
- 12 modular spaces per DIN rail.
- 35 × 15 mm DIN rail profile.
- 125 mm row spacing.
- DIN rails perforated for compatible wire holders.
- Designed for modular devices according to DIN 43880.
- Plastic covers with equipment cut-outs.
- 90° push-turn cover closure.
- RAL 7035 cover finish.
- Supplied without N/PE quick-connect terminals.
- EDF profile rails included.
- ABB order code 2CPX037637R9999.
Structured DIN Rail and Terminal Installation
Distribution panels combining modular-device mounting and terminal space provide an organised way to integrate protection, switching and conductor termination within the same cabinet field. The ABB 1V23KA divides its 900 mm overall height into dedicated 450 mm equipment and 450 mm terminal sections, supporting a clear and serviceable internal arrangement.
With its 1 PW width, 6 GU height and 72 space units, the 1V23KA is suited to professional low-voltage distribution assemblies requiring both DIN rail equipment and terminal facilities. Distribution panels or field combinations should have the same grid-unit configuration as the cabinets in which they are installed.
Typical Applications
- ABB CombiLine N low-voltage distribution cabinets.
- DIN rail-mounted protective and switching equipment.
- DIN rail terminal-block installations.
- Commercial building electrical distribution.
- Industrial low-voltage sub-distribution systems.
- Floor-standing and row switchgear cabinet assemblies.
