Why Choose the ABB 2V3A Distribution Panel?

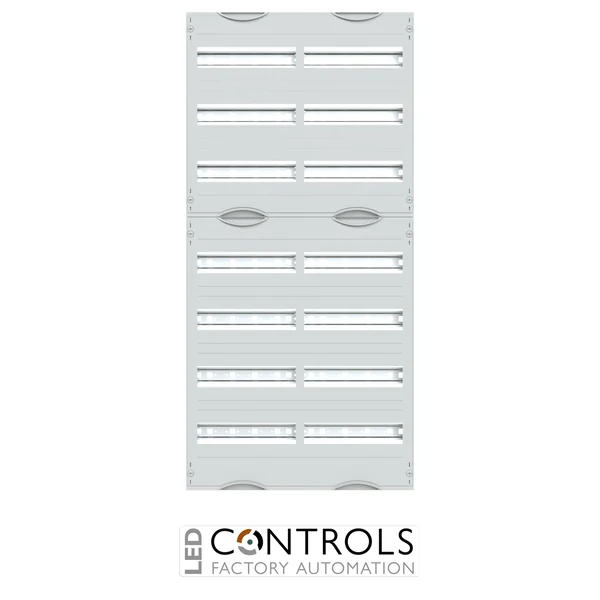

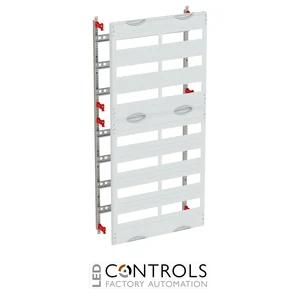

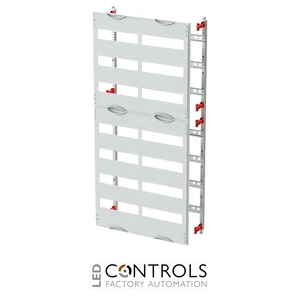

The ABB 2V3A is a 2 PW distribution panel designed for DIN rail-mounted modular devices within compatible ABB low-voltage distribution cabinets. Part of ABB’s internal expansion system, it is mounted on EDF profile rails and provides a structured, high-capacity installation platform for professional electrical sub-distribution assemblies.
Configured with 7 GU and a field width of 2 PW / 500 mm, the 2V3A provides 168 space units across seven horizontal DIN rail rows. Each rail accommodates 24 modular spaces, with 125 mm row spacing and 35 × 15 mm perforated DIN rails suitable for modular devices manufactured to DIN 43880.
The panel measures 500 mm wide × 1050 mm high and is suitable for compatible cabinets from 120 mm depth. Plastic covers with equipment cut-outs, 90-degree press-and-turn closures and a RAL 7035 finish provide a coordinated protective front arrangement, while the required EDF profile rails are included in the scope of delivery.
Key Advantages
- Purpose-designed 2 PW distribution panel for DIN rail-mounted devices.
- 7 GU / 1050 mm configuration for high-capacity modular installations.
- Provides 168 space units across seven DIN rail rows.
- 24 modular spaces per DIN rail for efficient equipment organisation.
- 125 mm row spacing supports a structured and accessible cabinet layout.
- EDF profile rails included for integration into compatible ABB cabinets.
Key Features
- ABB internal expansion distribution panel system.
- Model designation 2V3A.
- 2 PW / 500 mm field width.
- 7 GU / 1050 mm panel height.
- 168 space units.
- Seven horizontal DIN rail rows.
- 24 modular spaces per DIN rail.
- 125 mm row spacing.
- 35 × 15 mm perforated DIN rails.
- Suitable for modular devices according to DIN 43880.
- Plastic covers with equipment cut-outs.
- 90° press-and-turn closures.
- EDF profile rails included.
High-Capacity DIN Rail Distribution for Professional Cabinets
DIN rail distribution panels provide an organised mounting platform for modular protection, switching and control equipment within low-voltage cabinets. Standardised rail dimensions and spacing help panel builders create consistent assemblies while maintaining convenient access to installed equipment for wiring, inspection and servicing.
The ABB 2V3A provides seven horizontal DIN rail rows with 24 modular spaces per row, delivering a total capacity of 168 space units. Its 500 mm field width, 125 mm row spacing, protective covers and included EDF profile rails make it a coordinated high-capacity solution for integrating DIN 43880 modular equipment into compatible ABB distribution cabinets.
Typical Applications
- Low-voltage electrical distribution cabinets.
- High-capacity DIN rail modular device installations.
- ABB modular sub-distribution systems.
- Commercial building electrical distribution.
- Industrial power and control assemblies.
- Protection, switching and control device installations.
- Panel building and electrical system integration.
