Why Choose the ABB 1V3KA Distribution Panel 1PW?

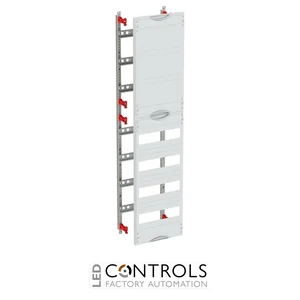

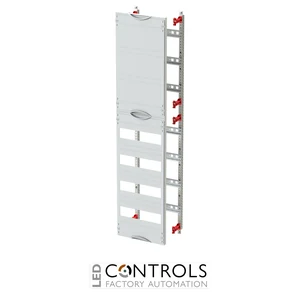

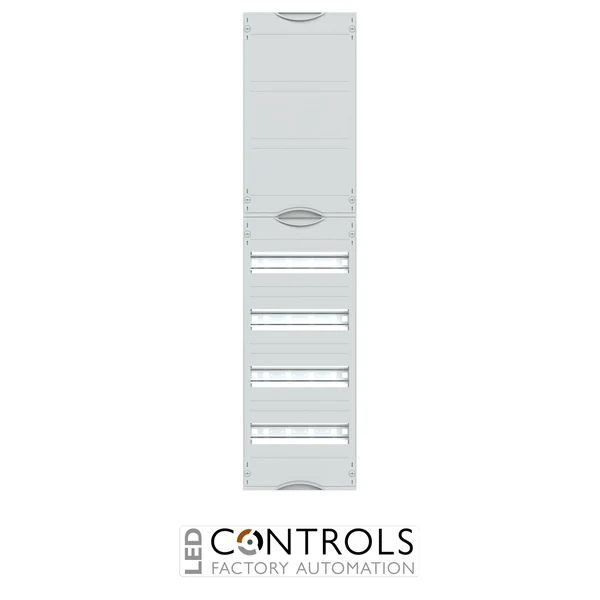

The ABB 1V3KA is a professional 1-panel-width (1PW) distribution panel designed for DIN-rail devices and DIN-rail terminals within compatible ABB electrical distribution cabinets. Supplied under ABB order code 2CPX037641R9999, it forms part of ABB's internal expansion system and provides a structured installation field for professional sub-distribution assemblies.
The 1V3KA has a 7 RE / 1050 mm height and a 1PW / 250 mm width, providing 84 PLE of installation capacity. It is equipped with 35 × 15 mm DIN rails with perforations for wire holders and uses a 125 mm row spacing, making it suitable for modular devices manufactured in accordance with DIN 43880.
Plastic covers with cut-outs and 90° press-and-turn closures provide convenient access to installed equipment, while the RAL 7035 light grey finish coordinates with ABB distribution systems. EDF profile rails are included, and the panel is suitable for compatible cabinets from 120 mm depth.
Key Advantages
- Genuine ABB 1PW distribution panel for professional sub-distribution systems.
- 84 PLE installation capacity for modular electrical devices and terminals.
- 7 RE / 1050 mm-high configuration with a compact 250 mm field width.
- Equipped with 35 × 15 mm DIN rails for modular devices to DIN 43880.
- 125 mm row spacing provides an organised modular installation layout.
- DIN rails feature perforations for convenient wire-holder installation.
- EDF profile rails included for integration into compatible ABB cabinet systems.
- Suitable for cabinets from 120 mm depth.
Key Features
- ABB 1V3KA distribution panel.
- ABB order code 2CPX037641R9999.
- 1-panel-width (1PW) configuration.
- 7 RE / 1050 mm overall height.
- 250 mm field width.
- 120 mm depth.
- 84 PLE installation capacity.
- 4 DIN rails with 12 modular spacings per rail.
- 35 × 15 mm perforated DIN-rail profile.
- 125 mm row spacing.
- Designed for DIN-rail devices and DIN-rail terminals.
- Plastic covers with cut-outs.
- 90° press-and-turn closures.
- RAL 7035 light grey finish.
- EDF profile rails included in the scope of supply.
Structured DIN-Rail Distribution for ABB Cabinet Systems
The ABB 1V3KA provides a coordinated installation field for modular DIN-rail devices and terminal equipment. Its 35 × 15 mm perforated DIN rails, 125 mm row spacing and 84 PLE capacity create an organised platform for constructing professional electrical distribution assemblies while providing space for routing and securing conductors.
The panel is designed so that distribution fields or field combinations use the same grid units as the cabinets into which they are installed. Its included EDF profile rails, modular dimensions and cut-out covers make the 1V3KA a practical choice for ABB cabinet systems where accessible, structured DIN-rail equipment installation is required.
Typical Applications
- ABB electrical sub-distribution systems.
- DIN-rail modular device installations.
- DIN-rail terminal assemblies.
- Commercial electrical distribution cabinets.
- Industrial switchboards and switchgear cabinets.
- Building-services electrical distribution systems.
- Standalone and row-mounted electrical cabinets.
- Professional switchboard and panel-building projects.
