Why Choose the ABB 2M3A Distribution Panel?

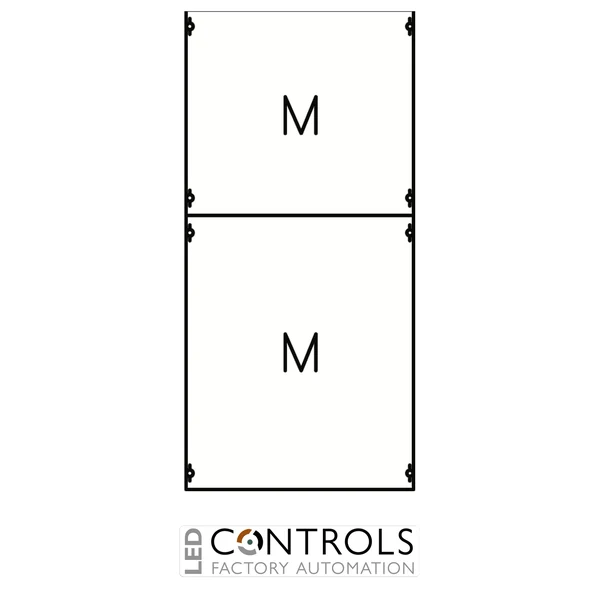

The ABB 2M3A (2CPX037644R9999) is a professional 2-panel-width distribution panel with mounting plate designed for internal configuration of compatible ABB sub-distribution cabinets. Part of the ABB DESUJ Sub Distribution product group, it provides a large and flexible mounting platform for electrical equipment that cannot be conveniently accommodated using conventional DIN rail mounting.
The 2M3A is mounted on EDF profiles and features robust 2 mm sheet-steel mounting plates. The mounting arrangement is continuously adjustable in depth using suitable depth angle pieces, providing a usable installation depth of 143 mm and allowing switching, control, protection and other electrical equipment to be positioned according to the requirements of the assembly.
With dimensions of 1050 mm high × 500 mm wide × 120 mm deep, a field width of 2 PW and capacity of 168 space units, the 2M3A provides substantial installation space for larger distribution assemblies. Closed plastic covers finished in RAL 7035 and fitted with 90-degree press-and-turn closures provide protection and convenient access, while the supplied EDF profile rails simplify integration into compatible ABB cabinets.
Key Advantages
- Purpose-designed 2 PW distribution panel with mounting plate.
- 168 space units provide substantial installation capacity.
- Generous 500 mm panel width for larger electrical assemblies.
- Robust 2 mm sheet-steel mounting plates for electrical equipment.
- Mounting arrangement is continuously depth-adjustable for flexible equipment positioning.
- Provides 143 mm usable mounting depth with the appropriate mounting arrangement.
- Closed plastic covers with practical 90-degree press-and-turn closures.
- EDF profile rails are included for straightforward integration into compatible ABB cabinets.
Key Features
- ABB 2M3A distribution panel.
- 2 PW / 500 mm field width.
- 7 grid units / 1050 mm panel height.
- 168 space units.
- 2 mm sheet-steel mounting plates.
- Continuously depth-adjustable mounting arrangement.
- 143 mm usable mounting depth.
- Closed plastic covers finished in RAL 7035.
- 90-degree press-and-turn cover closures.
- Suitable for cabinets from 120 mm depth.
- EDF profile mounting system with profile rails included.
Flexible Mounting for Larger Electrical Assemblies
Mounting-plate distribution panels provide a versatile installation platform for larger or non-modular electrical components that are not intended for conventional DIN rail mounting. The ABB 2M3A combines a wide two-panel format with substantial sheet-steel mounting surfaces, allowing switching, control, protection and other compatible electrical equipment to be positioned according to the requirements of the installation.
The 2M3A is designed around ABB's EDF profile mounting system and combines depth-adjustable mounting plates with closed protective covers. Distribution panels and field combinations are designed to correspond with the grid-unit configuration of the cabinet in which they are installed, helping panel builders create organised and consistent internal enclosure layouts.
Typical Applications
- Electrical sub-distribution boards.
- Commercial building distribution systems.
- Industrial electrical cabinets.
- Switching and control equipment installations.
- Protection and power distribution equipment.
- Non-modular electrical component mounting.
- Custom panel-building applications.
- ABB EDF profile-based cabinet systems.
