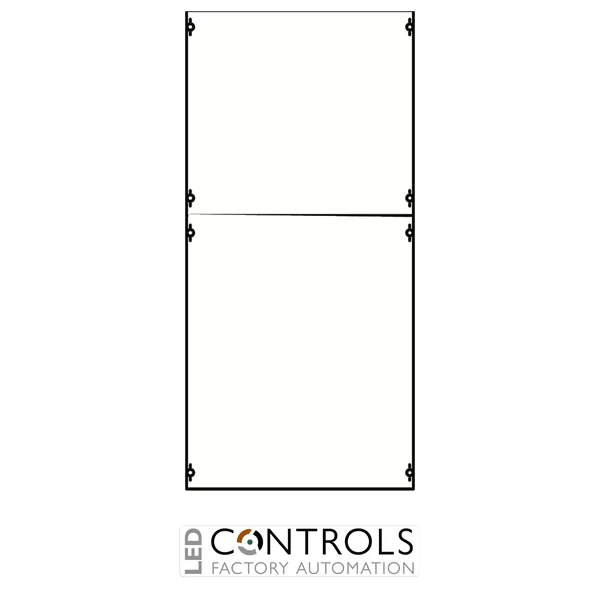

Why Choose the ABB 2B3A Distribution Panel?
The ABB 2B3A is a 2 panel-width (2PW) distribution panel designed as part of ABB's internal expansion system for touch protection within compatible electrical distribution cabinets. Mounted on EDF profile rails, it provides a coordinated closed field for professional sub-distribution assemblies.
The 2B3A has a 7 grid-unit (7GU) configuration with a height of 1050 mm, width of 500 mm and 168 space units (PLE). Its closed plastic covers provide touch protection while maintaining an organised internal cabinet arrangement.
Finished in RAL 7035, the ABB 2B3A uses practical 90° push-turn fasteners and is suitable for compatible cabinets from 120 mm depth. The required EDF profile rails are included, providing a coordinated mounting solution for ABB distribution systems.
Key Advantages
- Purpose-designed 2PW distribution panel for touch protection.
- 7GU / 1050 mm installation height.
- 500 mm field width with 168 space units (PLE).
- Closed plastic covers provide a protected internal installation field.
- 90° push-turn fasteners provide convenient cover access.
- EDF profile rails included for installation in compatible ABB cabinets.
Key Features
- ABB internal expansion distribution panel.
- 2 panel widths (2PW).
- 7 grid units (GU).
- 1050 mm height.
- 500 mm width.
- 120 mm depth.
- 168 space units (PLE).
- Mounted on EDF profile rails.
- Designed for touch protection.
- Closed plastic cover design.
- 90° push-turn cover fasteners.
- RAL 7035 finish.
- Suitable for compatible cabinets from 120 mm depth.
Reliable Touch Protection for Electrical Distribution Systems
Touch-protection distribution panels help create organised and protected internal arrangements within electrical cabinets by covering installation areas and limiting direct access to internal equipment. A coordinated internal expansion system also supports consistent cabinet construction, inspection and servicing.
The ABB 2B3A combines a 1050 mm high × 500 mm wide field with closed plastic covers and included EDF profile rails. Distribution panels or field combinations must have the same grid-unit configuration as the cabinets in which they are installed, supporting coordinated ABB distribution assemblies.
Typical Applications
- Electrical sub-distribution cabinets.
- Touch-protected internal cabinet fields.
- ABB CombiLine N internal expansion systems.
- Commercial building distribution systems.
- Industrial electrical distribution assemblies.
- Professional panel-building and switchgear installations.
