Why Choose the ABB 1V4A Distribution Panel?

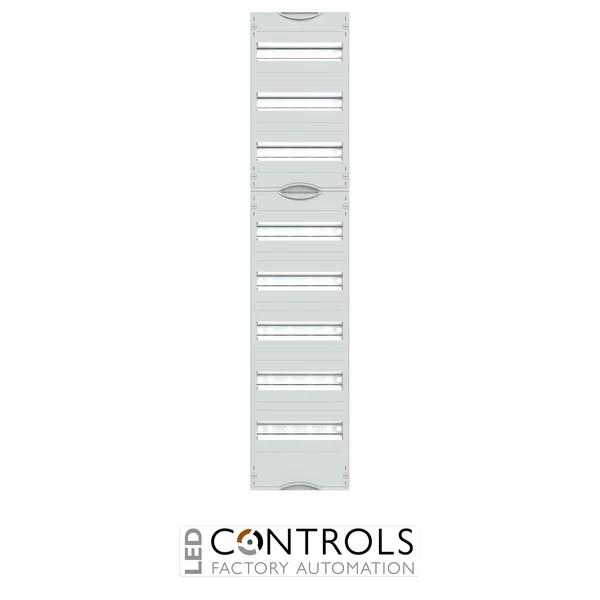

The ABB 1V4A is a professional 1PW distribution panel designed for DIN rail-mounted modular devices within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX037651R9999, it forms part of the DESUJ Sub Distribution range and provides a structured internal expansion solution for professional panel building.
The 1V4A provides an 8GU / 1200 mm installation height with a 1PW / 250 mm field width and 96 space units. Its cover arrangement comprises a 450 mm top section and 750 mm bottom section, supporting an organised modular layout within the cabinet.

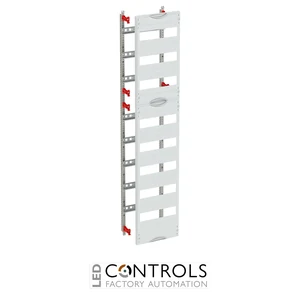

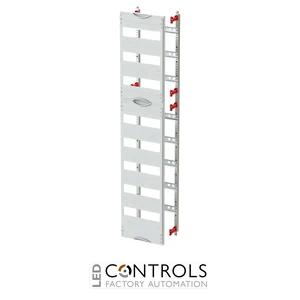

Designed for modular devices according to DIN 43880, the panel uses horizontal 35 × 15 mm DIN rails with 125 mm row spacing. Light-grey RAL 7035 plastic covers with equipment cut-outs and 90-degree push-turn fasteners provide protection and convenient access, while EDF profile rails are included for system integration.
Key Advantages
- Professional 1PW distribution panel for DIN rail-mounted modular devices.
- 8GU / 1200 mm installation height provides substantial equipment capacity.
- Offers 96 space units within a compact 250 mm-wide field.
- 125 mm row spacing supports organised device installation and wiring.
- Suitable for compatible ABB A, TG–SZ and U cabinet ranges.
- EDF profile rails are included for straightforward cabinet integration.
Key Features
- ABB 1V4A distribution panel.
- ABB order code 2CPX037651R9999.
- 1PW / 250 mm field width.
- 8GU / 1200 mm installation height.
- 96 space units.
- Horizontal 35 × 15 mm DIN rails.
- 125 mm row spacing.
- Light-grey RAL 7035 plastic covers with equipment cut-outs.
Structured DIN Rail Installation for Distribution Cabinets
Distribution panels such as the ABB 1V4A provide a coordinated internal platform for installing modular electrical devices in low-voltage distribution cabinets. Its 96 space units and 125 mm row spacing support an organised arrangement of protective, switching and control devices while maintaining convenient access for wiring and servicing.
The 1V4A is mounted on included EDF profile rails and can be used in compatible cabinets from 120 mm depth. Distribution panels and field combinations should have the same grid-unit configuration as the cabinet in which they are installed, helping create a correctly coordinated modular distribution system.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB sub-distribution assemblies.
- DIN rail-mounted protective devices.
- Modular switching and control equipment.
- Commercial and industrial electrical distribution systems.
- Professional panel building and cabinet expansion.
