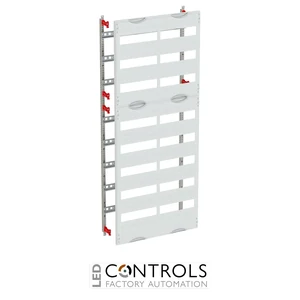

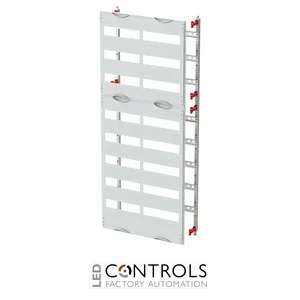

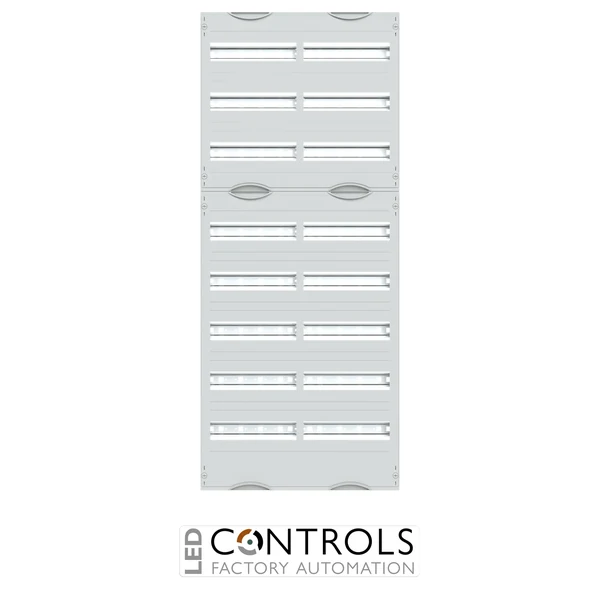

Why Choose the ABB 2V4A Distribution Panel?
The ABB 2V4A is a professional 2PW distribution panel designed for DIN rail-mounted modular devices within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX037652R9999, it forms part of the DESUJ Sub Distribution range and provides a structured internal fitting solution mounted on EDF profile rails.
The 2V4A provides an 8GU / 1200 mm installation height with a 2PW / 500 mm field width and 192 space units. Eight horizontal DIN rails provide 24 modular spaces per rail, giving panel builders substantial capacity for protective, switching and control devices within a two-field configuration.
Designed for modular devices according to DIN 43880, the panel uses 35 × 15 mm DIN rails with 125 mm row spacing. Light-grey RAL 7035 plastic covers with equipment cut-outs and 90-degree push-turn fasteners provide protection and convenient access, while the included EDF profile rails support straightforward cabinet integration.
Key Advantages
- Professional 2PW distribution panel for DIN rail-mounted modular devices.
- 8GU / 1200 mm installation height provides substantial equipment capacity.
- Offers 192 space units across eight DIN rails.
- 500 mm field width supports high-density modular equipment installations.
- 125 mm row spacing helps maintain organised equipment and wiring layouts.
- EDF profile rails are included for straightforward cabinet integration.
Key Features
- ABB 2V4A distribution panel.
- ABB order code 2CPX037652R9999.
- 2PW / 500 mm field width.
- 8GU / 1200 mm installation height.
- 192 space units.
- Eight horizontal 35 × 15 mm DIN rails.
- 125 mm row spacing.
- Light-grey RAL 7035 plastic covers with equipment cut-outs.
High-Capacity DIN Rail Installation for Distribution Cabinets
Distribution panels such as the ABB 2V4A provide a coordinated internal platform for installing modular electrical devices within low-voltage distribution cabinets. Its eight DIN rails and 192 space units provide extensive equipment capacity, while the 125 mm row spacing supports organised installation, wiring and servicing.
The 2V4A is mounted on included EDF profile rails and is suitable for compatible cabinets from 120 mm depth. Distribution panels or field combinations should have the same grid-unit configuration as the cabinet in which they are installed, helping create a correctly coordinated modular distribution system.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB sub-distribution assemblies.
- DIN rail-mounted circuit protection devices.
- Modular switching and control equipment.
- Commercial and industrial electrical distribution systems.
- Professional panel building and cabinet expansion.
