Why Choose the ABB 2M4A Distribution Panel?

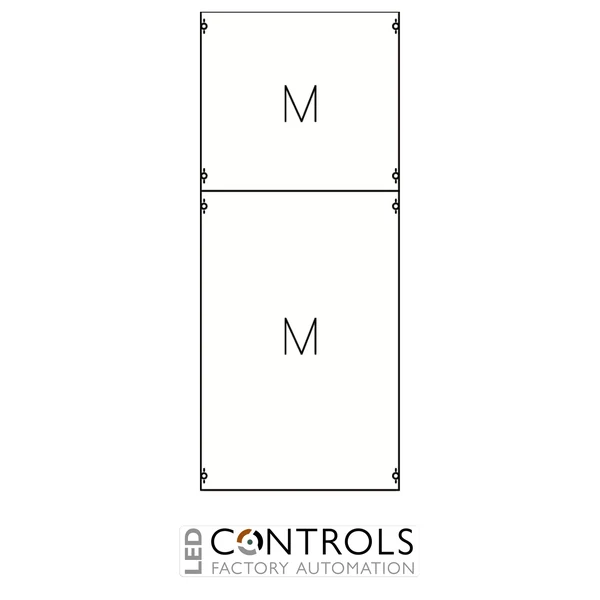

The ABB 2M4A is a 2 PW distribution panel with mounting plates, designed for structured internal installation in compatible ABB low-voltage distribution cabinets. Part of the ABB internal expansion system, it is mounted on EDF profile rails and provides a practical foundation for electrical equipment that requires direct mounting to a plate rather than DIN rail installation.
The 2M4A has a 2 PW field width of 500 mm and an 8 GU height of 1200 mm, providing 192 space units. Its mounting plates are manufactured from 2 mm sheet steel and are continuously adjustable in depth using the ABB ED33 deep angle piece, providing flexibility when accommodating equipment of different installation depths.
With a usable mounting depth of 143 mm, closed plastic covers and a RAL 7035 finish, the 2M4A provides a coordinated solution for professional panel building. It is suitable for compatible cabinets from 120 mm depth, and the required EDF profile rails are included with the distribution panel.
Key Advantages
- Dedicated 2 PW distribution panel with mounting plates.
- Large 500 mm-wide equipment mounting field.
- 8 GU / 1200 mm configuration provides substantial installation capacity.
- Provides 192 space units within the distribution field.
- Robust 2 mm sheet-steel mounting plates.
- Mounting plates are continuously adjustable in depth using the ABB ED33 deep angle piece.
- 143 mm usable mounting depth accommodates suitable electrical equipment.
- EDF profile rails included for integration into compatible ABB cabinets.
Key Features
- ABB internal expansion system.
- Model 2M4A.
- 2 PW / 500 mm field width.
- 8 GU / 1200 mm height.
- 192 space units.
- Mounting plates manufactured from 2 mm sheet steel.
- Continuously depth-adjustable mounting arrangement.
- Compatible with ABB ED33 deep angle pieces for depth adjustment.
- 143 mm usable mounting depth.
- Closed plastic covers.
- 90° push-turn cover closure.
- RAL 7035 cover finish.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included.
- ABB order code 2CPX037656R9999.
Flexible Mounting Plate Installation for Distribution Cabinets
Mounting-plate distribution panels provide a versatile installation surface for electrical components that are not intended for conventional modular DIN rail mounting. The ABB 2M4A uses robust 2 mm sheet-steel mounting plates across a 500 mm-wide field, providing panel builders with substantial space for suitable control, switching and distribution equipment.
The mounting plates can be continuously adjusted in depth using ABB ED33 deep angle pieces, allowing the equipment position to be adapted to the cabinet layout while providing a usable mounting depth of 143 mm. The 2M4A's 2 PW width, 8 GU height and 192 space units make it a flexible platform for professional low-voltage cabinet construction.
Typical Applications
- ABB low-voltage distribution cabinets.
- Electrical equipment requiring mounting-plate installation.
- Control and switching equipment assemblies.
- Commercial building electrical distribution.
- Industrial low-voltage distribution systems.
- Standalone and row switchgear cabinet assemblies.
