Why Choose the ABB 1V5A Distribution Panel?
The ABB 1V5A (2CPX037665R9999) is a high-capacity 1-panel-width distribution panel for DIN rail mounting devices designed for use within compatible ABB sub-distribution cabinets. Part of the ABB DESUJ Sub Distribution product group, it provides an organised internal mounting system for modular protection, switching and control equipment in professional low-voltage distribution assemblies.

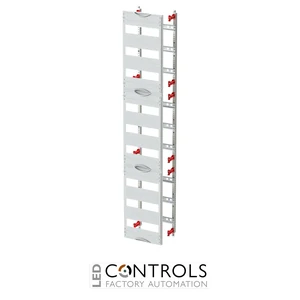

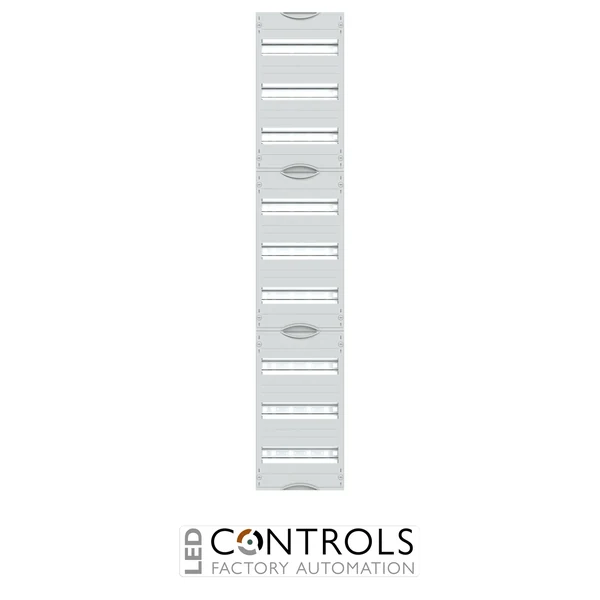

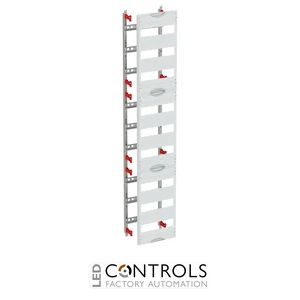

The 1V5A is mounted on EDF profiles and provides 108 modular space units across nine horizontal DIN rails, with 12 modular spaces per rail. The panel uses 35 × 15 mm DIN rails with perforations for wire holders and a 125 mm row spacing, providing a structured installation platform for modular devices manufactured to DIN 43880 dimensions.
With dimensions of 1350 mm high × 250 mm wide × 120 mm deep, the 1V5A combines substantial device capacity with a space-efficient 1 PW format. Plastic covers with cut-outs, finished in RAL 7035 and secured using 90-degree press-and-turn closures, provide convenient access, while the included EDF profile rails support straightforward integration into compatible ABB cabinet systems.
Key Advantages
- High-capacity 1 PW distribution panel for DIN rail mounting devices.
- 108 modular space units provide substantial installation capacity.
- 9 horizontal DIN rails with 12 modular spaces per rail.
- 125 mm row spacing supports organised equipment installation and wiring.
- 35 × 15 mm DIN rails feature perforations for wire holders.
- Suitable for modular installation devices manufactured to DIN 43880 dimensions.
- Plastic covers with cut-outs and practical 90-degree press-and-turn closures.
- EDF profile rails are included for integration into compatible ABB cabinets.
Key Features
- ABB 1V5A distribution panel.
- 1 PW / 250 mm field width.
- 9 grid units / 1350 mm panel height.
- 108 modular space units.
- 9 DIN rails with 12 modular spaces per rail.
- 35 × 15 mm horizontal DIN rails.
- 125 mm DIN rail spacing.
- Supplied without N/PE Quick-terminals.
- Plastic covers with cut-outs finished in RAL 7035.
- EDF profile mounting system with profile rails included.
High-Capacity DIN Rail Distribution for Electrical Installations
Distribution panels provide a structured mounting platform for modular protection, switching and control equipment within electrical cabinets. The ABB 1V5A combines nine horizontal DIN rails with 108 modular spaces, allowing a substantial quantity of compatible DIN rail equipment to be arranged within a narrow single-panel field while maintaining an organised internal layout.
The 1V5A is designed around ABB's EDF profile mounting system and is suitable for modular equipment manufactured to DIN 43880 dimensions. Its 125 mm row spacing, included protective covers and supplied EDF profile rails provide a practical foundation for building professional high-capacity sub-distribution assemblies within compatible ABB cabinets.
Typical Applications
- Electrical sub-distribution boards.
- Commercial building distribution systems.
- Residential electrical distribution installations.
- Industrial electrical and control cabinets.
- DIN rail protection and switching equipment.
- Modular control and automation devices.
- High-capacity single-field distribution assemblies.
- ABB EDF profile-based cabinet systems.
