Why Choose the ABB 2V5KA Distribution Panel?

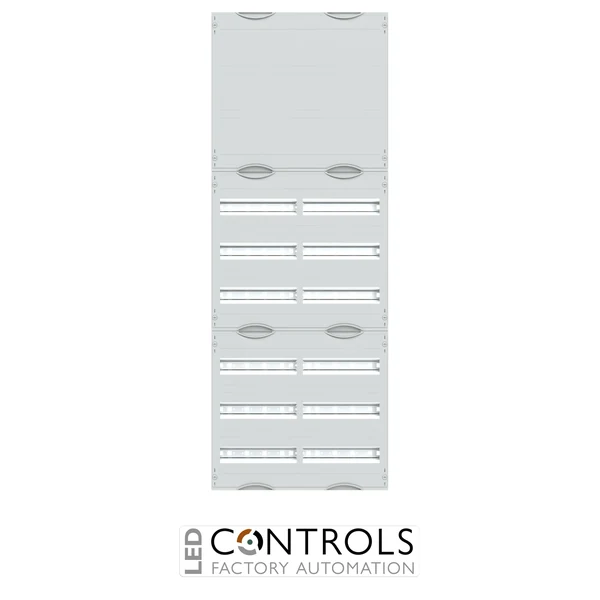

The ABB 2V5KA is a 2 panel-width (2PW) distribution panel designed for DIN rail-mounted devices and terminal blocks within compatible ABB electrical distribution cabinets. Mounted on EDF profile rails, it provides a structured internal installation field for modular equipment and terminals in professional sub-distribution assemblies.
The 2V5KA has a 9 grid-unit (9GU) configuration measuring 1350 mm high × 500 mm wide × 120 mm deep. It provides 216 modular space units (PLE) and incorporates six 35 × 15 mm horizontal DIN rails, with 24 modular spaces per DIN rail and a 125 mm row spacing.

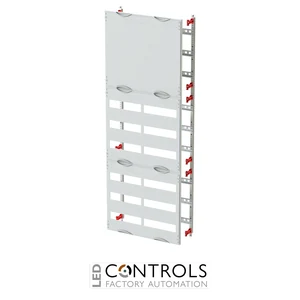

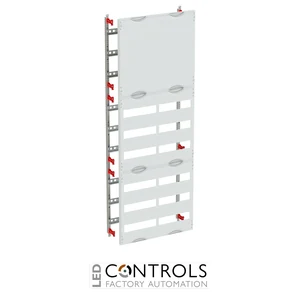

The panel features plastic covers with equipment cut-outs, 90° push-turn fasteners and a RAL 7035 finish. It is supplied without N/PE quick plug-in terminals, while the required EDF profile rails are included for integration into compatible ABB cabinet systems.
Key Advantages
- Purpose-designed 2PW distribution panel for DIN rail devices and terminal blocks.
- Provides 216 modular space units (PLE).
- Six DIN rails with 24 modular spaces per rail.
- 125 mm row spacing for organised equipment installation.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included for integration into ABB distribution systems.
Key Features
- ABB internal expansion distribution panel.
- 2 panel widths (2PW).
- 9 grid units (GU).
- 1350 mm height.
- 500 mm width.
- 120 mm depth.
- 216 modular space units (PLE).
- Six 35 × 15 mm horizontal DIN rails.
- 24 modular spaces per DIN rail.
- 125 mm row spacing.
- Suitable for modular equipment according to DIN 43880.
- Plastic covers with equipment cut-outs and 90° push-turn fasteners.
- RAL 7035 finish.
Reliable Modular Distribution for Electrical Installations
Distribution panels provide the internal mounting structure required for modular protective, switching and control devices together with DIN rail terminal blocks. A coordinated DIN rail arrangement helps panel builders create orderly installations while supporting straightforward wiring, inspection and maintenance.
The ABB 2V5KA combines a 1350 mm high × 500 mm wide installation field with six horizontal DIN rails and capacity for 216 modular spaces. Its included EDF profile rails, 125 mm row spacing and coordinated covers make it a practical internal expansion solution for compatible ABB distribution cabinets.
Typical Applications
- Electrical sub-distribution cabinets.
- DIN rail-mounted protective and switching devices.
- DIN rail terminal block installations.
- Commercial building distribution systems.
- Industrial electrical distribution assemblies.
- Professional panel-building and switchgear installations.
