Why Choose the ABB 1M5A Distribution Panel?
The ABB 1M5A is a professional 1PW distribution panel designed for mounting electrical equipment within compatible ABB modular distribution cabinets. Supplied under ABB order code 2CPX037669R9999, it combines a robust mounting plate, closed protective covers and EDF profile rails to create a structured internal installation system.

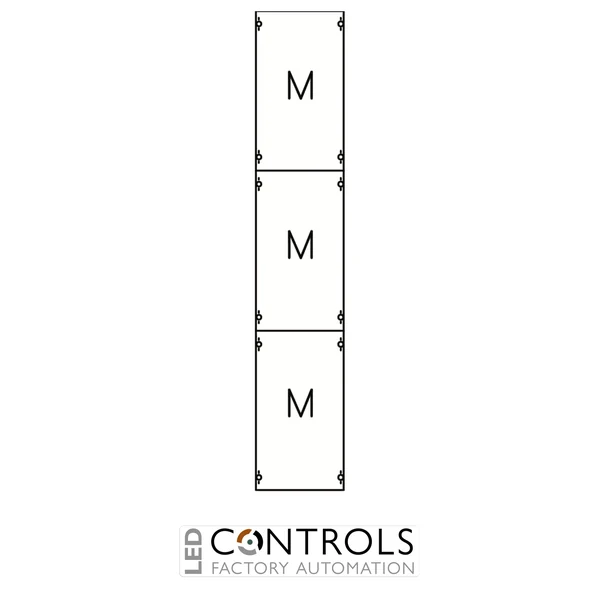

As part of the ABB DESUJ Sub Distribution range, the 1M5A provides a 9GU / 1350 mm installation height with a 1PW / 250 mm field width and 108 space units. Its cover arrangement is divided into three 450 mm sections, providing a coordinated layout across the full panel height.
The mounting plate is manufactured from 2 mm sheet steel and is continuously depth-adjustable using the appropriate deep-mounting arrangement. A usable mounting depth of 143 mm, closed light-grey RAL 7035 plastic covers and included EDF profile rails make the 1M5A a versatile solution for professional cabinet construction.
Key Advantages
- Professional 1PW distribution panel for compatible ABB modular cabinets.
- 9GU / 1350 mm installation height for extensive equipment mounting capacity.
- Provides 108 space units within a compact single-field format.
- Robust 2 mm sheet-steel mounting plate.
- Continuously depth-adjustable mounting arrangement for flexible component positioning.
- EDF profile rails are included for straightforward cabinet integration.
Key Features
- ABB 1M5A distribution panel.
- ABB order code 2CPX037669R9999.
- 1PW / 250 mm field width.
- 9GU / 1350 mm installation height.
- 108 space units.
- 2 mm sheet-steel mounting plate.
- 143 mm usable mounting depth.
- Closed RAL 7035 light-grey plastic covers.
Flexible Mounting for Distribution Cabinets
Distribution panels such as the ABB 1M5A provide a structured internal platform for installing electrical components that require mounting directly to a plate rather than to DIN rails. The 2 mm sheet-steel mounting plate provides a robust equipment surface, while its continuously adjustable depth helps accommodate components with different installation dimensions.
The 1M5A is mounted on included EDF profile rails and is suitable for compatible cabinets from 120 mm depth. Distribution panels or panel combinations must have the same grid-unit height as the cabinet in which they are installed, helping create a correctly coordinated modular distribution assembly.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB sub-distribution assemblies.
- Plate-mounted electrical equipment.
- Switchgear and control component installations.
- Commercial and industrial distribution systems.
- Professional panel building and cabinet expansion.
