Why Choose the ABB 2M5A Distribution Panel?
The ABB 2M5A is a professional 2PW distribution panel designed for mounting electrical equipment on steel mounting plates within compatible ABB low-voltage distribution cabinets. Supplied under ABB order code 2CPX037670R9999, it forms part of the DESUJ Sub Distribution range and provides a structured internal fitting system mounted on EDF profile rails.

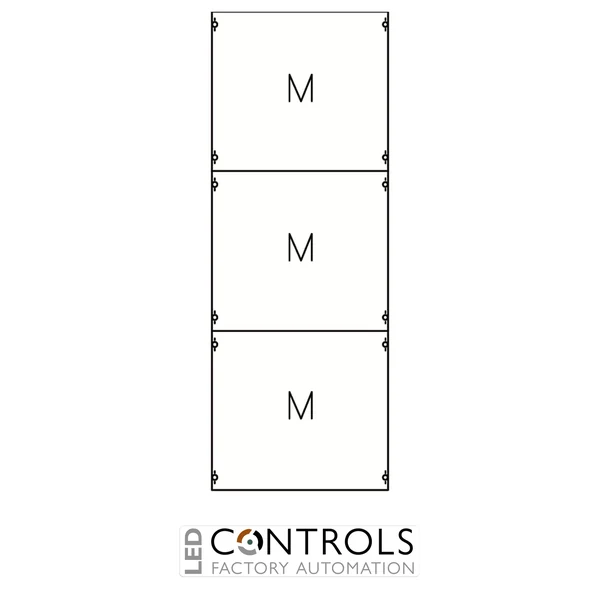

The 2M5A provides a 9GU / 1350 mm installation height with a 2PW / 500 mm field width and 216 space units. Its cover arrangement is divided into three 450 mm sections, providing a coordinated layout across the complete panel height.
The mounting plates are manufactured from 2 mm sheet steel and are continuously depth-adjustable using suitable deep-mounting brackets. A usable mounting depth of 143 mm, closed light-grey RAL 7035 plastic covers and included EDF profile rails make the 2M5A a versatile solution for professional cabinet construction.
Key Advantages
- Professional 2PW distribution panel for compatible ABB modular cabinets.
- 9GU / 1350 mm installation height for extensive equipment mounting capacity.
- Provides 216 space units within a 500 mm-wide two-field configuration.
- Robust 2 mm sheet-steel mounting plates.
- Continuously depth-adjustable mounting arrangement for flexible component positioning.
- EDF profile rails are included for straightforward cabinet integration.
Key Features
- ABB 2M5A distribution panel.
- ABB order code 2CPX037670R9999.
- 2PW / 500 mm field width.
- 9GU / 1350 mm installation height.
- 216 space units.
- 2 mm sheet-steel mounting plates.
- 143 mm usable mounting depth.
- Closed RAL 7035 light-grey plastic covers.
Flexible Mounting for Distribution Cabinets
Distribution panels such as the ABB 2M5A provide a structured internal platform for installing electrical components that require mounting directly to a plate. The 2 mm sheet-steel mounting plates provide robust equipment-mounting surfaces, while continuous depth adjustment helps accommodate components with different installation dimensions.
The 2M5A is mounted on included EDF profile rails and can be used in compatible cabinets from 120 mm depth. Distribution panels or panel combinations must have the same grid-unit height as the cabinets in which they are installed, while floor-standing and switchgear cabinet configurations require two panels or panel combinations to be installed one above the other.
Typical Applications
- Low-voltage electrical distribution cabinets.
- ABB sub-distribution assemblies.
- Plate-mounted electrical equipment.
- Switchgear and control component installations.
- Commercial and industrial electrical distribution systems.
- Professional panel building and cabinet expansion.
