Why Choose the ABB 1B5A Distribution Panel?

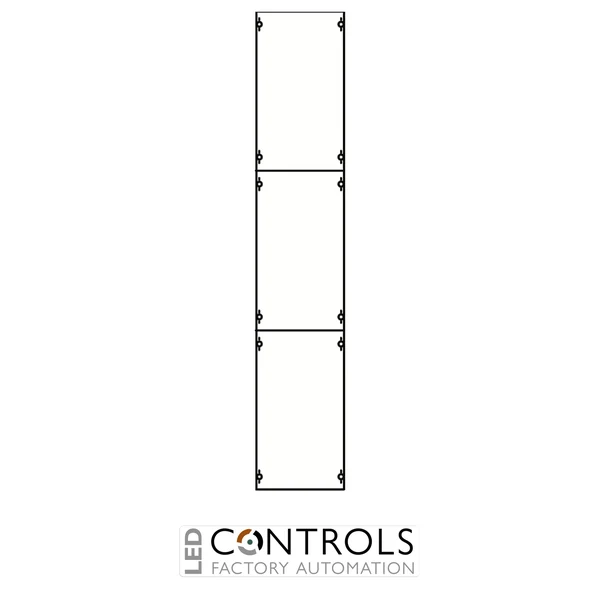

The ABB 1B5A is a 1 PW distribution panel from ABB’s internal expansion system, designed to provide touch protection within compatible low-voltage distribution cabinets. The assembly is mounted on EDF profile rails and provides a coordinated blank-field arrangement for professional switchboard and sub-distribution installations.
Configured with 9 GU, the 1B5A has a field width of 1 PW / 250 mm and a panel height of 1350 mm. It provides 108 space units, making it suitable for completing and protecting unused or reserved areas within modular ABB cabinet layouts.
The panel uses plastic protective covers with a RAL 7035 finish and 90-degree press-and-turn closures. It can be installed in compatible cabinets from 120 mm depth, and the required EDF profile rails are included in the scope of delivery.
Key Advantages
- Purpose-designed 1 PW touch-protection distribution panel.
- 9 GU / 1350 mm configuration for tall cabinet installations.
- Provides 108 space units within a 250 mm-wide field.
- Plastic protective covers support a safe and organised internal cabinet layout.
- 90° press-and-turn closures provide convenient cover retention and access.
- EDF profile rails included for integration into compatible ABB cabinets.
Key Features
- ABB internal expansion distribution panel system.
- Model designation 1B5A.
- Designed for touch protection.
- 1 PW / 250 mm field width.
- 9 GU / 1350 mm panel height.
- 108 space units.
- Plastic protective covers.
- 90° press-and-turn closures.
- RAL 7035 finish.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included.
Reliable Touch Protection for Distribution Cabinets
Touch-protection panels help create a coordinated protective barrier across internal areas of low-voltage distribution cabinets. They are particularly useful for completing cabinet layouts where equipment spaces are reserved, unused or require protective covering while maintaining the modular structure of the overall assembly.
The ABB 1B5A provides a 1350 mm-high, 250 mm-wide protective field with 108 space units. Its plastic covers, 90-degree press-and-turn closures and included EDF profile rails provide a coordinated solution for integrating touch protection into compatible ABB distribution systems.
Typical Applications
- Low-voltage electrical distribution cabinets.
- Touch protection within modular switchboard assemblies.
- Blank and reserve fields in distribution systems.
- ABB modular sub-distribution cabinets.
- Commercial building electrical distribution.
- Industrial electrical distribution assemblies.
- Panel building and switchboard integration.
