Why Choose the ABB 2B5A Distribution Panel?

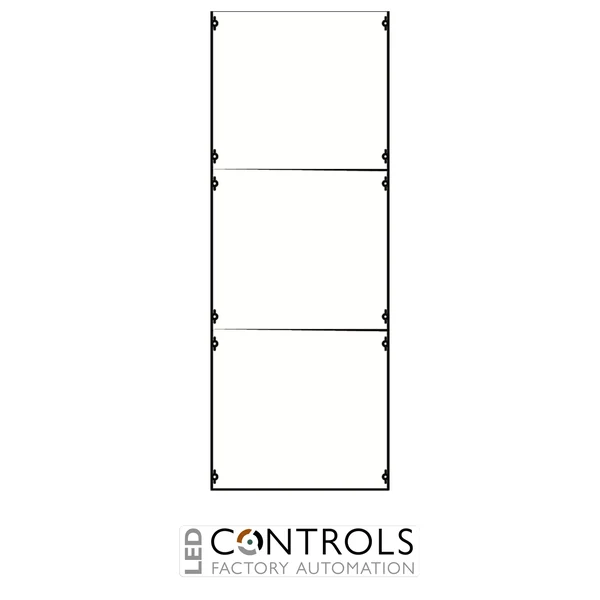

The ABB 2B5A is a 2 PW distribution panel from ABB’s internal expansion system, designed to provide touch protection within compatible low-voltage distribution cabinets. Supplied mounted on EDF profile rails, it creates a coordinated closed protective field for professional switchboard and sub-distribution assemblies.
Configured with 9 GU, the 2B5A has a field width of 2 PW / 500 mm and a panel height of 1350 mm. It provides 216 space units, making it particularly suitable for completing and protecting large unused, reserved or equipment-free areas within modular ABB cabinet layouts.
The assembly uses closed plastic covers finished in RAL 7035 and secured by 90-degree press-and-turn closures. It is suitable for cabinets from 120 mm depth, while the EDF profile rails required for installation are included in the scope of delivery.
Key Advantages
- Purpose-designed 2 PW touch-protection distribution panel.
- 9 GU / 1350 mm configuration for tall cabinet assemblies.
- Provides 216 space units across a 500 mm-wide field.
- Closed plastic covers provide a coordinated protective barrier.
- 90° press-and-turn closures provide convenient cover retention and access.
- Suitable for compatible cabinets from 120 mm depth.
- EDF profile rails included for straightforward integration into ABB cabinet systems.
Key Features
- ABB internal expansion distribution panel system.
- Model designation 2B5A.
- Designed for touch protection.
- 2 PW / 500 mm field width.
- 9 GU / 1350 mm panel height.
- 216 space units.
- Closed plastic protective covers.
- 90° press-and-turn closures.
- RAL 7035 finish.
- EDF profile rail mounting system.
- EDF profile rails included.
- Suitable for ABB A, TG…SZ and U cabinet series.
Reliable Touch Protection for Large Distribution Fields
Touch-protection distribution panels provide a coordinated protective barrier across internal areas of low-voltage cabinets. Closed covers are particularly useful for completing cabinet layouts where spaces are unused, reserved for future expansion or otherwise require protection while maintaining the modular structure of the overall assembly.
The ABB 2B5A provides a substantial 1350 mm-high × 500 mm-wide protective field with 216 space units. Its closed plastic covers, 90-degree press-and-turn closures and included EDF profile rails provide a coordinated solution for integrating touch protection into compatible ABB distribution systems.
Typical Applications
- Low-voltage electrical distribution cabinets.
- Touch protection within modular switchboard assemblies.
- Blank and reserve fields in distribution systems.
- ABB modular sub-distribution cabinets.
- Commercial building electrical distribution.
- Industrial electrical distribution assemblies.
- Panel building and switchboard integration.
