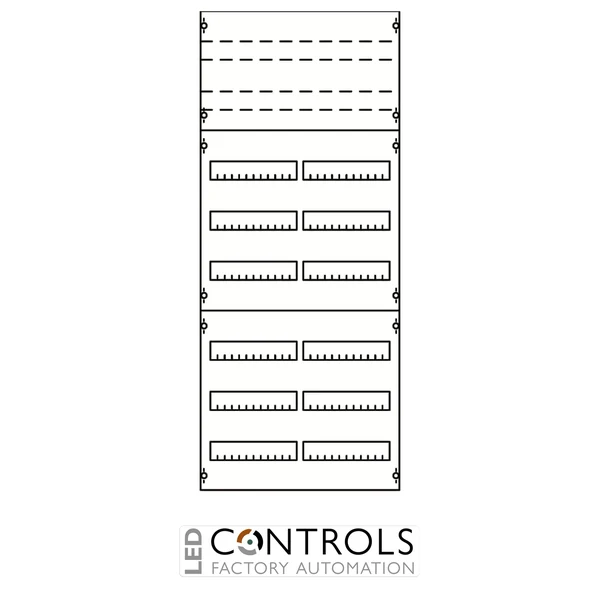

Why Choose the ABB 2V43KA Distribution Panel?
The ABB 2V43KA is a professional distribution panel designed for DIN-rail devices and DIN-rail terminals within compatible ABB electrical distribution cabinets. Supplied under ABB order code 2CPX037678R9999, it forms part of the ABB CombiLine N internal expansion system and provides a structured modular installation field for professional sub-distribution assemblies.
The 2V43KA has an 8 RE / 1200 mm height and a 2-field / 500 mm width, providing 192 PLE of installation capacity. It incorporates five DIN rails, each providing 24 modular spacings, with a 125 mm row spacing and 35 × 15 mm perforated DIN-rail profile for compatible wire holders.
Designed for modular equipment to DIN 43880, the panel uses plastic covers with cut-outs and practical 90° press-and-turn closures. EDF profile rails are included in the scope of supply, while the RAL 7035 light grey finish and 120 mm depth support coordinated integration into compatible ABB distribution cabinet systems.
Key Advantages
- Genuine ABB distribution panel for professional sub-distribution systems.
- 192 PLE installation capacity for modular electrical devices and terminals.
- 8 RE / 1200 mm-high configuration with a 500 mm-wide field.
- Five DIN rails provide structured mounting for modular electrical equipment.
- 24 modular spacings per DIN rail for high-capacity equipment installation.
- 125 mm row spacing provides practical working space between equipment rows.
- Perforated 35 × 15 mm DIN rails support compatible wire holders and organised conductor routing.
- EDF profile rails included for coordinated integration into compatible ABB cabinets.
Key Features
- ABB 2V43KA distribution panel.
- ABB order code 2CPX037678R9999.
- 2-field / 500 mm configuration.
- 8 RE / 1200 mm overall height.
- 120 mm depth.
- 192 PLE installation capacity.
- 5 DIN rails.
- 24 modular spacings per DIN rail.
- 35 × 15 mm perforated DIN-rail profile.
- 125 mm row spacing.
- Designed for DIN-rail devices and DIN-rail terminals.
- Suitable for modular devices manufactured to DIN 43880.
- Plastic covers with cut-outs.
- 90° press-and-turn closures.
- RAL 7035 light grey finish.
- EDF profile rails included in the scope of supply.
High-Capacity DIN-Rail Distribution for ABB Cabinet Systems
The ABB 2V43KA provides a coordinated installation field for modular DIN-rail devices and terminal equipment. Its five 35 × 15 mm perforated DIN rails, 125 mm row spacing and total capacity of 192 PLE create a spacious platform for constructing professional electrical distribution assemblies while supporting organised conductor routing with compatible wire holders.
The distribution panel is designed so that panels or field combinations use the same grid units as the cabinets in which they are installed. For standalone and row switching cabinets, two fields or field combinations are installed one above the other. The included EDF profile rails provide the mechanical framework for cabinet integration, while the cut-out plastic covers provide accessible protection for installed modular equipment.
Typical Applications
- ABB CombiLine N electrical sub-distribution systems.
- High-capacity DIN-rail modular device installations.
- DIN-rail terminal assemblies.
- Commercial electrical distribution cabinets.
- Industrial switchboards and switchgear cabinets.
- Building-services electrical distribution systems.
- Standalone and row-mounted electrical cabinets.
- Professional switchboard and panel-building projects.
