Why Choose the ABB ED61MA Mounting Plate Set?

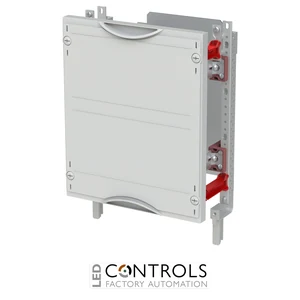

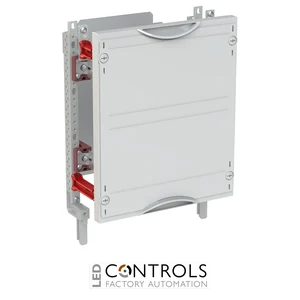

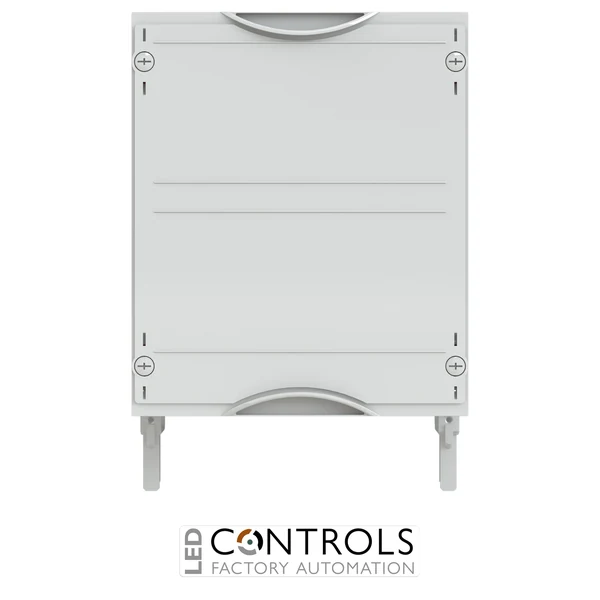

The ABB ED61MA is a 1 PW combination set for mounting-plate applications within ABB low-voltage distribution cabinets. Part of the ABB internal expansion system, the assembly is mounted on EDF profiles and provides a structured solution for installing equipment that requires a solid steel mounting surface rather than conventional DIN rail mounting.
The ED61MA has a 2 GU / 300 mm height, a 1 PW / 250 mm field width and provides 24 space units. Its mounting plate is manufactured from 2 mm sheet steel and can be continuously adjusted in depth using the associated depth-angle arrangement, allowing the equipment mounting position to be adapted to the installation.
Designed for cabinets from 200 mm depth, the ED61MA allows a maximum installation depth of 178 mm between the mounting plate and cover. Plastic covers with 90-degree press-and-turn closures and a RAL 7035 finish provide a coordinated front arrangement, while EDF profile rails and field connectors are included in the scope of delivery.
Key Advantages
- Purpose-designed 1 PW combination set for mounting-plate installations.
- 2 GU / 300 mm configuration with 24 space units.
- Uses a robust 2 mm sheet-steel mounting plate.
- Mounting depth can be continuously adjusted to suit installed equipment.
- Provides up to 178 mm installation depth between mounting plate and cover.
- Suitable for compatible distribution cabinets from 200 mm depth.
- EDF profile rails and field connectors included for system integration.
Key Features
- ABB internal expansion combination-set system.
- Model designation ED61MA.
- 1 PW / 250 mm field width.
- 2 GU / 300 mm height.
- 24 space units.
- 2 mm sheet-steel mounting plate.
- Continuously adjustable mounting depth.
- Maximum installation depth between plate and cover of 178 mm.
- Plastic protective covers.
- 90° press-and-turn closures.
- RAL 7035 finish.
- EDF profile rails and field connectors included.
Flexible Equipment Mounting for Distribution Cabinets
Mounting-plate assemblies provide a versatile installation surface for electrical devices that cannot be accommodated efficiently on standard DIN rails. The solid sheet-steel plate allows equipment to be positioned according to the requirements of the application, making the arrangement suitable for control, switching and other cabinet-mounted components.
The ABB ED61MA combines a compact 300 mm × 250 mm field with a 2 mm steel mounting plate and continuously adjustable installation depth. Combination sets are inserted at the top or bottom of the distribution panel and secured to the cabinet on the opposite side, providing a coordinated mounting solution within compatible ABB distribution systems.
Typical Applications
- Low-voltage electrical distribution cabinets.
- Equipment requiring mounting-plate installation.
- Control and switching component mounting.
- ABB modular sub-distribution systems.
- Commercial building electrical distribution.
- Industrial electrical and control assemblies.
- Panel building and switchboard integration.
