Why Choose the ABB ED62MA Mounting Plate Set?
The ABB ED62MA is a 2 PW mounting-plate combination set for ABB low-voltage distribution cabinets. Part of ABB’s internal expansion system, it is mounted on EDF profiles and provides a structured solution for installing electrical equipment that requires a solid steel mounting surface rather than conventional DIN rail mounting.

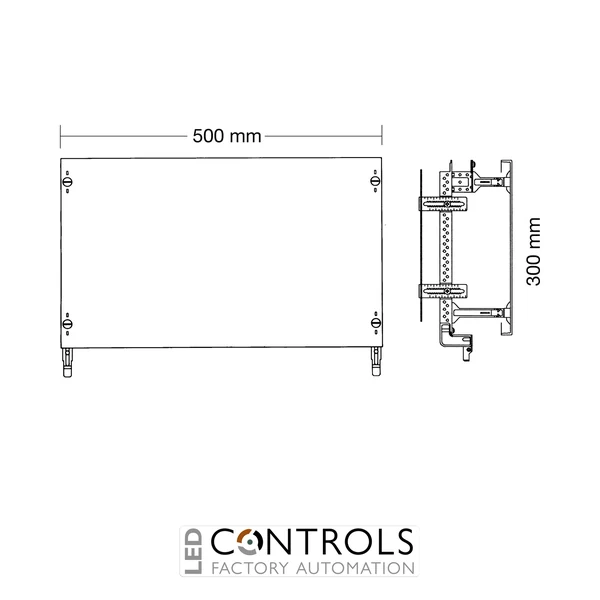

The ED62MA has a 2 GU / 300 mm height, a 2 PW / 500 mm field width and provides 48 space units. Its mounting plate is manufactured from 2 mm sheet steel and can be continuously adjusted in depth using the associated depth-angle arrangement, allowing the equipment position to be adapted to the installation.
Designed for cabinets from 200 mm depth, the ED62MA provides a maximum installation depth of 178 mm between the mounting plate and cover. Plastic covers with 90-degree press-and-turn closures and a RAL 7035 finish provide a coordinated front arrangement, while the EDF profile rails and field connectors required for integration are included.
Key Advantages
- Purpose-designed 2 PW combination set for mounting-plate installations.
- 2 GU / 300 mm configuration with 48 space units.
- Wide 500 mm mounting field for flexible equipment arrangements.
- Uses a robust 2 mm sheet-steel mounting plate.
- Mounting depth is continuously adjustable to suit installed equipment.
- Provides up to 178 mm installation depth between mounting plate and cover.
- EDF profile rails and field connectors included for system integration.
Key Features
- ABB internal expansion combination-set system.
- Model designation ED62MA.
- 2 PW / 500 mm field width.
- 2 GU / 300 mm height.
- 48 space units.
- 2 mm sheet-steel mounting plate.
- Continuously adjustable mounting depth.
- Maximum installation depth between plate and cover of 178 mm.
- Plastic protective covers.
- 90° press-and-turn closures.
- RAL 7035 finish.
- EDF profile rails and field connectors included.
Flexible Equipment Mounting for Distribution Cabinets
Mounting-plate assemblies provide a versatile installation surface for electrical devices that cannot be accommodated efficiently on standard DIN rails. A solid sheet-steel plate allows equipment to be positioned according to the requirements of the application, making this arrangement suitable for control, switching and other cabinet-mounted components.
The ABB ED62MA combines a 300 mm-high × 500 mm-wide field with a 2 mm steel mounting plate and continuously adjustable installation depth. The combination set is designed to be inserted into the distribution panel at the top or bottom and secured to the cabinet on the opposite side, providing a coordinated mounting solution within compatible ABB distribution systems.
Typical Applications
- Low-voltage electrical distribution cabinets.
- Equipment requiring mounting-plate installation.
- Control and switching component mounting.
- ABB modular sub-distribution systems.
- Commercial building electrical distribution.
- Industrial electrical and control assemblies.
- Panel building and switchboard integration.
