Why Choose the ABB ED61KA Terminal Plate 1PW?

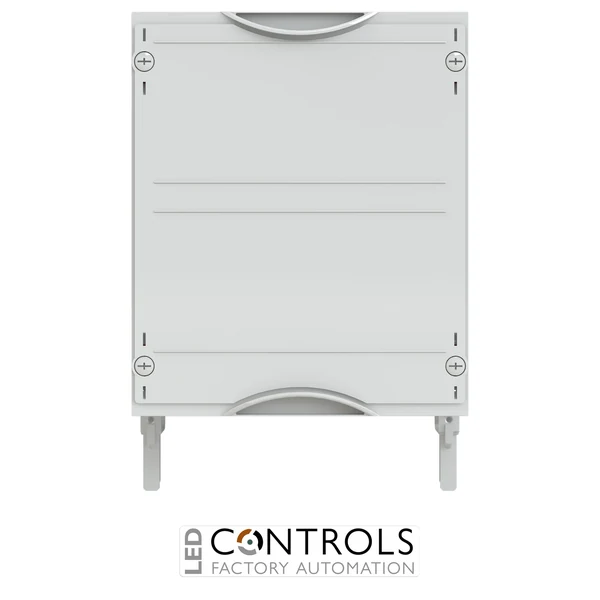

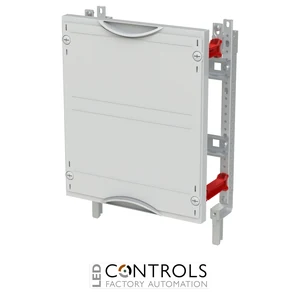

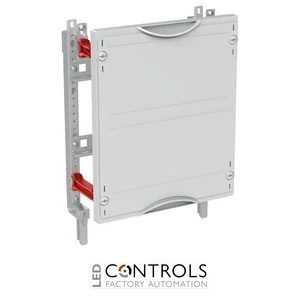

The ABB ED61KA is a professional 1-panel-width (1PW) terminal plate combination set designed for structured DIN-rail terminal and modular equipment installation within compatible ABB sub-distribution systems. Supplied under ABB order code 2CPX037822R9999, it forms part of ABB's internal expansion system for combination sets.
The ED61KA has a 2 GU / 300 mm height and a 1PW / 250 mm width, providing 24 PLE of installation capacity. It is equipped with horizontally arranged 35 × 15 mm DIN rails and has a standard 150 mm row spacing, which can be repositioned when required for the installation.
Designed for cabinets from 200 mm depth, the DIN rails can also be configured for protection-insulated installation using the ABB ZK90P2 insulator piece. The combination set is designed to be plugged into the distribution panel at the top or bottom and secured on the opposite side of the cabinet, providing a coordinated solution for professional ABB distribution assemblies.
Key Advantages
- Genuine ABB 1PW terminal plate combination set for professional sub-distribution systems.
- Compact 2 GU / 300 mm-high configuration.
- 250 mm width for a single panel-width installation field.
- Provides 24 PLE of installation capacity.
- Equipped with horizontally arranged 35 × 15 mm DIN rails.
- 150 mm row spacing can be repositioned when installation requirements demand it.
- DIN rails can be configured for protection-insulated installation using the optional ABB ZK90P2 insulator piece.
- Designed for coordinated integration with compatible ABB distribution panels and cabinets.
Key Features
- ABB ED61KA terminal plate.
- ABB order code 2CPX037822R9999.
- 1-panel-width (1PW) configuration.
- 2 GU / 300 mm overall height.
- 250 mm field width.
- 24 PLE installation capacity.
- Horizontally arranged DIN rails.
- 35 × 15 mm DIN-rail profile.
- 150 mm row spacing.
- Adjustable DIN-rail row positioning.
- Suitable for protection-insulated configuration using ABB ZK90P2 insulator pieces.
- Designed for cabinets from 200 mm depth.
- Combination-set construction for integration with compatible ABB distribution panels.
Structured Terminal Installation for ABB Distribution Systems
The ABB ED61KA provides a compact DIN-rail installation field for terminals and compatible modular equipment within ABB sub-distribution assemblies. Its horizontally arranged 35 × 15 mm rails and adjustable 150 mm row spacing give panel builders flexibility when arranging terminal equipment and conductor connections within the available 1PW field.
As an ABB combination set, the ED61KA is intended for coordinated installation with compatible distribution panels. Its 300 × 250 mm format provides 24 PLE while requiring a cabinet depth of at least 200 mm, making it a practical solution where a dedicated terminal or DIN-rail field is required within a larger distribution assembly.
Typical Applications
- ABB electrical sub-distribution systems.
- DIN-rail terminal installations.
- Modular electrical equipment mounting.
- Commercial electrical distribution cabinets.
- Industrial switchboards and switchgear assemblies.
- Building-services distribution systems.
- Protection-insulated DIN-rail installations when used with suitable ABB insulator pieces.
- Professional switchboard and panel-building projects.
