Why Choose the ABB ED62KA Terminal Plate 2PW?
The ABB ED62KA is a professional 2-panel-width (2PW) terminal plate combination set designed for structured DIN-rail terminal and modular equipment installation within compatible ABB sub-distribution systems. Supplied under ABB order code 2CPX037823R9999, it forms part of ABB's internal expansion system for combination sets.

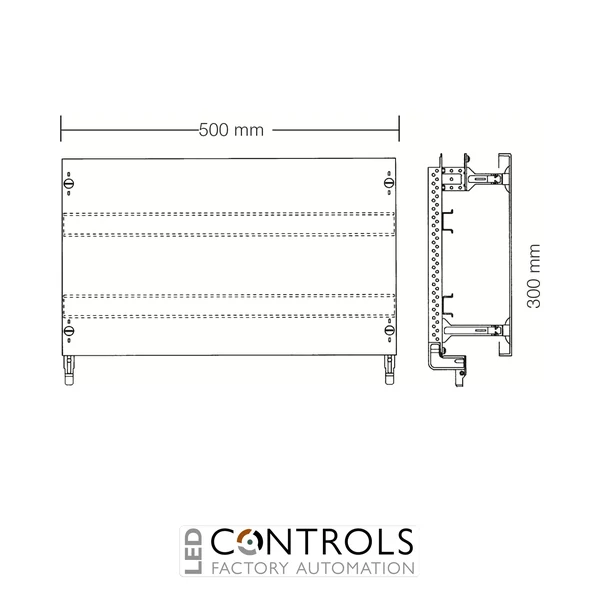

The ED62KA has a 2 RE / 300 mm height and a 2PW / 500 mm width, providing 48 PLE of installation capacity. It uses horizontally arranged 35 × 15 mm DIN rails with a standard 150 mm row spacing, which can be repositioned where required to suit the installation.
Designed for cabinets from 200 mm depth, the DIN rails can also be configured for protection-insulated installation using the ABB ZK90P2 insulator piece. The combination set is designed to be plugged into compatible distribution panels at the top and bottom and attached on the opposite side of the cabinet, providing a coordinated solution for professional ABB distribution assemblies.
Key Advantages
- Genuine ABB 2PW terminal plate combination set for professional sub-distribution systems.
- Compact 2 RE / 300 mm-high configuration.
- 500 mm-wide two-panel-width installation field.
- Provides 48 PLE of installation capacity.
- Equipped with horizontally arranged 35 × 15 mm DIN rails.
- 150 mm row spacing can be repositioned when installation requirements demand it.
- DIN rails can be configured for protection-insulated installation using the optional ABB ZK90P2 insulator piece.
- Designed for coordinated integration with compatible ABB distribution panels and cabinets.
Key Features
- ABB ED62KA terminal plate.
- ABB order code 2CPX037823R9999.
- 2-panel-width (2PW) configuration.
- 2 RE / 300 mm overall height.
- 500 mm field width.
- 48 PLE installation capacity.
- Horizontally arranged DIN rails.
- 35 × 15 mm DIN-rail profile.
- 150 mm row spacing.
- DIN-rail row spacing can be repositioned when required.
- Suitable for protection-insulated configuration using ABB ZK90P2 insulator pieces.
- Designed for cabinets from 200 mm depth.
- Combination-set construction for integration with compatible ABB distribution panels.
High-Capacity Terminal Installation for ABB Distribution Systems
The ABB ED62KA provides a coordinated DIN-rail installation field for terminals and compatible modular equipment within ABB sub-distribution assemblies. Its horizontally arranged 35 × 15 mm DIN rails and adjustable 150 mm row spacing give panel builders flexibility when arranging terminal equipment and conductor connections across the wider 2PW field.
As an ABB combination set, the ED62KA is intended for use together with compatible distribution panels. Its 300 × 500 mm format provides 48 PLE of installation capacity and is suitable for cabinets from 200 mm depth, making it a practical solution where a dedicated, high-capacity terminal or DIN-rail field is required within a larger distribution assembly.
Typical Applications
- ABB electrical sub-distribution systems.
- High-capacity DIN-rail terminal installations.
- Modular electrical equipment mounting.
- Commercial electrical distribution cabinets.
- Industrial switchboards and switchgear assemblies.
- Building-services distribution systems.
- Protection-insulated DIN-rail installations when used with suitable ABB insulator pieces.
- Professional switchboard and panel-building projects.
