Why Choose the ABB ED250T3 XT1-3 Expansion Plate?

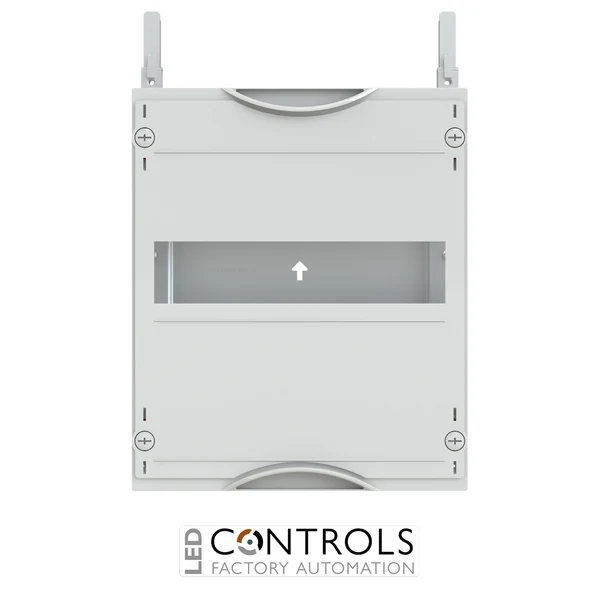

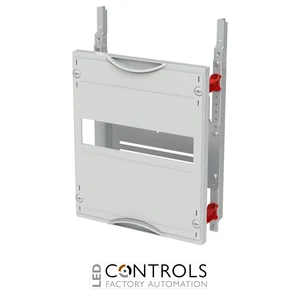

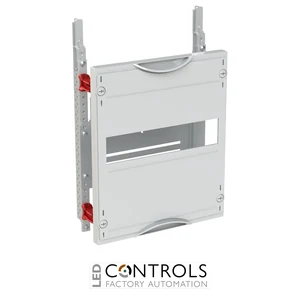

The ABB ED250T3 is a 1 panel-width (1PW) combination set designed for the installation of ABB Tmax moulded-case circuit breakers within compatible electrical distribution cabinets. Mounted on the ABB EDF profile system, it provides an unequipped internal expansion field for Tmax XT1 and XT3 circuit breakers.
The ED250T3 has a 2 grid-unit (2GU) configuration measuring 300 mm high × 250 mm wide and providing 24 space units (PLE). Its sheet-steel mounting plate can be continuously adjusted in depth, while plastic covers with 90° push-turn fasteners provide a coordinated finished installation.
Suitable for compatible cabinets from 200 mm depth, the ED250T3 can accommodate Tmax XT1 circuit breakers in 3- and 4-pole configurations and Tmax XT3 circuit breakers in 3- and 4-pole configurations. EDF profile rails and field connectors are included for integration with compatible ABB distribution panels.
Key Advantages
- Purpose-designed 1PW combination set for ABB Tmax circuit breakers.
- Suitable for Tmax XT1 and XT3 MCCBs.
- 2GU / 300 mm installation height and 250 mm field width.
- Provides 24 space units (PLE).
- Sheet-steel mounting plate with continuous depth adjustment.
- Plastic covers with practical 90° push-turn fasteners.
- EDF profile rails and field connectors included for coordinated installation.
Key Features
- ABB internal expansion combination set.
- 1 panel width (1PW).
- 2 grid units (GU).
- 300 mm height.
- 250 mm width.
- 24 space units (PLE).
- Designed for ABB Tmax XT1 and XT3 circuit breakers.
- XT1 accommodation: 2 × 3-pole or 1 × 4-pole.
- XT3 accommodation: 1 × 3-pole or 1 × 4-pole.
- Sheet-steel mounting plate.
- Mounting plate continuously adjustable in depth.
- Plastic covers with 90° push-turn fasteners.
- RAL 7035 finish.
- Suitable for compatible cabinets from 200 mm depth.
Reliable Tmax Circuit-Breaker Integration for Distribution Systems
Circuit-breaker combination sets provide a coordinated mounting solution for integrating moulded-case circuit breakers into professional electrical distribution assemblies. The ED250T3 is supplied unequipped, allowing the appropriate compatible Tmax XT1 or XT3 circuit breaker to be selected for the installation.
The ABB ED250T3 combines a 300 mm high × 250 mm wide installation field with a depth-adjustable sheet-steel mounting plate and coordinated protective covers. The combination set is designed for use together with compatible distribution panels, supporting structured and serviceable ABB cabinet assemblies.
Typical Applications
- ABB Tmax XT1 circuit-breaker installations.
- ABB Tmax XT3 circuit-breaker installations.
- Electrical sub-distribution cabinets.
- Moulded-case circuit-breaker mounting fields.
- Commercial and industrial power distribution.
- Professional switchgear and panel-building assemblies.
