2CPX037827R9999 ABB ED320T4 T4 3P Expansion Plate 1PW

2CPX037827R9999 ABB ED320T4 T4 3P Expansion Plate 1PW

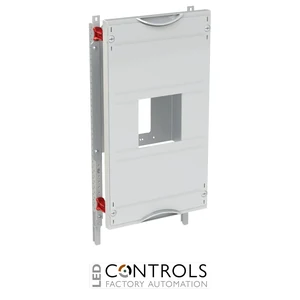

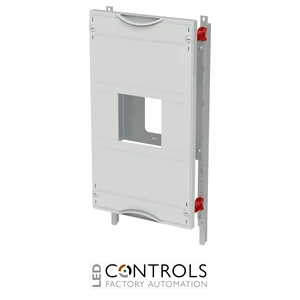

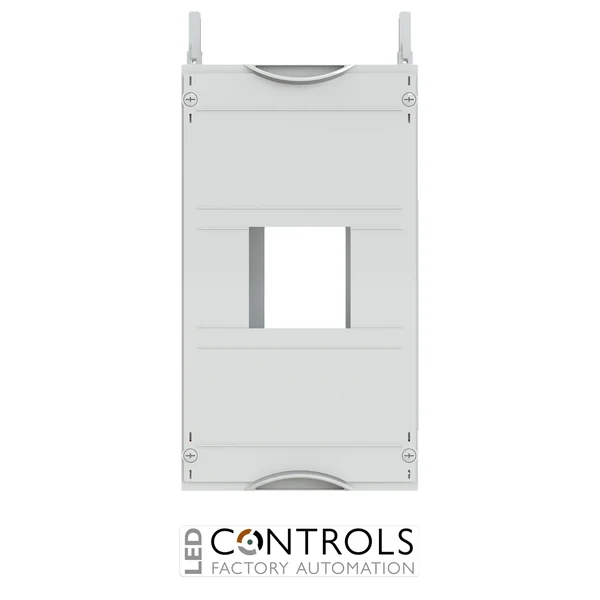

ABB ED320T4 1PW unequipped expansion combination set with a depth-adjustable sheet-steel mounting plate for integrating a 3-pole Tmax T4 / XT4 moulded-case circuit breaker into compatible electrical distribution cabinets.

SKU: 2CPX037827R9999Alt SKU: ED320T4MPN: 2CPX037827R9999
Price
List Price £190.67 ex VAT
Your Price (ex VAT)
£190.67
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £190.67
Trade pricing is personalised to your account

Manufacturer Lead Time

£190.67

Why Choose the ABB ED320T4 T4 3P Expansion Plate?

The ABB ED320T4 is a 1 panel-width (1PW) combination set designed for integrating an ABB Tmax T4 / XT4 moulded-case circuit breaker into compatible electrical distribution cabinets. Mounted on the ABB EDF profile system, it provides an unequipped internal expansion field specifically configured for a 3-pole Tmax T4 installation.

The ED320T4 has a 3 grid-unit (3GU) configuration measuring 450 mm high × 250 mm wide and providing 36 space units (PLE). Its sheet-steel mounting plate is continuously adjustable in depth, providing installation flexibility when positioning the compatible circuit breaker within the cabinet.

Suitable for compatible cabinets from 200 mm depth, the ED320T4 features plastic covers with 90° push-turn fasteners and a RAL 7035 finish. EDF profile rails and field connectors are included, and the combination set is designed for use together with compatible ABB distribution panels.

Key Advantages

  • Purpose-designed 1PW expansion field for ABB Tmax T4 / XT4.
  • Configured for a 3-pole moulded-case circuit breaker.
  • 3GU / 450 mm installation height and 250 mm field width.
  • Provides 36 space units (PLE).
  • Sheet-steel mounting plate with continuous depth adjustment.
  • Suitable for compatible cabinets from 200 mm depth.
  • EDF profile rails and field connectors included for coordinated installation.

Key Features

  • ABB internal expansion combination set.
  • 1 panel width (1PW).
  • 3 grid units (GU).
  • 450 mm height.
  • 250 mm width.
  • 36 space units (PLE).
  • Designed for ABB Tmax T4 / XT4 circuit breakers.
  • Configured for 3-pole circuit-breaker installation.
  • Sheet-steel mounting plate.
  • Mounting plate continuously adjustable in depth.
  • Supplied unequipped for selection of the required circuit breaker.
  • Plastic covers with 90° push-turn fasteners.
  • RAL 7035 finish.

Reliable Tmax Circuit-Breaker Integration for Distribution Systems

Circuit-breaker combination sets provide a coordinated mounting solution for integrating moulded-case circuit breakers into professional electrical distribution assemblies. The ED320T4 is supplied unequipped and is specifically designed to accommodate a 3-pole ABB Tmax T4 / XT4 circuit breaker.

The ABB ED320T4 combines a 450 mm high × 250 mm wide installation field with a continuously depth-adjustable sheet-steel mounting plate and coordinated protective covers. Its included EDF profile rails and field connectors support structured integration with compatible ABB distribution panels.

Typical Applications

  • ABB Tmax T4 / XT4 3-pole circuit-breaker installations.
  • Electrical sub-distribution cabinets.
  • Moulded-case circuit-breaker mounting fields.
  • Commercial building power distribution.
  • Industrial electrical distribution assemblies.
  • Professional switchgear and panel-building installations.

Technical Specifications

Tick the specs you need, then view products that match.

Product Series S&J CombiLine N
Product type Tmax circuit-breaker combination set / expansion plate
Equipment status Unequipped
Compatible circuit breaker ABB Tmax T4 / XT4
Circuit-breaker configuration 3-pole
Panel width 1PW
Grid units 3GU
Height 450 mm
Width 250 mm
Space units 36 PLE
Minimum cabinet depth 200 mm
Mounting plate material Sheet steel
Mounting plate adjustment Continuously adjustable in depth
Cover material Plastic
Cover fastening 90° push-turn fastener
Colour RAL 7035
Mounting system EDF profile
EDF profile rails Included
Field connectors Included
Quantity 1
GTIN/EAN 4011617378273
ABB order code 2CPX037827R9999
ABB product group DESUJ Sub Distribution

Frequently Asked Questions

What is the ABB ED320T4 used for?

The ABB ED320T4 is a 1PW unequipped combination set designed for integrating a compatible 3-pole ABB Tmax T4 / XT4 moulded-case circuit breaker into an electrical distribution cabinet.

Which circuit breaker is compatible with the ABB ED320T4?

The ED320T4 is specifically designed for a 3-pole ABB Tmax T4 / XT4 moulded-case circuit breaker.

What are the dimensions of the ABB ED320T4?

The ED320T4 has a 3GU, 1PW configuration measuring 450 mm high × 250 mm wide and is suitable for compatible cabinets from 200 mm depth.

Is a circuit breaker supplied with the ABB ED320T4?

No. The ABB ED320T4 is supplied unequipped, allowing the compatible 3-pole Tmax T4 / XT4 circuit breaker to be selected separately.

What is the ABB order code for the ED320T4?

The ABB order code for the ED320T4 is 2CPX037827R9999.

Trusted by Panel Builders and Electrical Installers

ABB internal expansion combination sets provide coordinated mounting solutions for professional power-distribution assemblies, helping panel builders and installers integrate Tmax circuit breakers into structured, accessible and dependable cabinet systems.
