Why Choose the ABB ED630T5 T4 / T5 Expansion Plate?

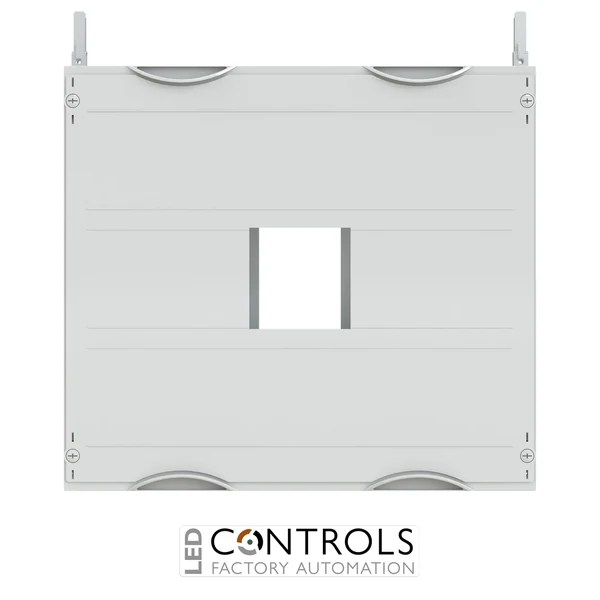

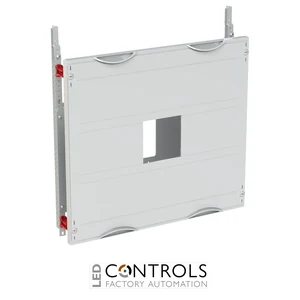

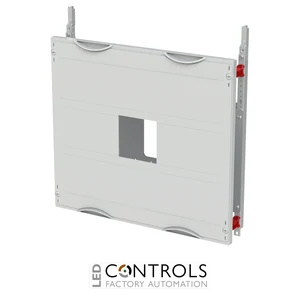

The ABB ED630T5 is a 2 PW expansion plate combination set designed for the installation of compatible ABB Tmax moulded-case circuit breakers within low-voltage distribution cabinets. Mounted on EDF profiles, the assembly provides a dedicated internal mounting solution for Tmax T4 4-pole and Tmax T5 3- and 4-pole circuit breakers.
The ED630T5 has a 2 PW field width of 500 mm and a 3 GU height of 450 mm, providing 72 space units. The combination set is supplied unequipped, allowing the appropriate compatible Tmax circuit breaker to be selected for the distribution assembly.
Designed for compatible cabinets from 200 mm depth, the ED630T5 uses a sheet-steel mounting plate that can be continuously adjusted in depth. Plastic covers with a 90° push-turn closure and RAL 7035 finish complete the assembly, while EDF profile rails and field connectors are included for coordinated cabinet integration.
Key Advantages
- Dedicated 2 PW expansion plate for compatible ABB Tmax circuit breakers.
- Suitable for Tmax T4 4-pole circuit breakers.
- Suitable for Tmax T5 3- and 4-pole circuit breakers.
- Large 500 mm-wide installation field.
- 3 GU / 450 mm height provides a compact breaker installation section.
- Provides 72 space units.
- Continuously depth-adjustable sheet-steel mounting plate.
- EDF profile rails and field connectors included for coordinated installation.
Key Features
- ABB internal expansion combination set.
- Model ED630T5.
- 2 PW / 500 mm field width.
- 3 GU / 450 mm height.
- 72 space units.
- Designed for compatible ABB Tmax moulded-case circuit breakers.
- Suitable for Tmax T4 4P.
- Suitable for Tmax T5 3P and 4P.
- Also suitable for compatible T5 / XT5 installations.
- Supplied unequipped for breaker installation.
- Sheet-steel mounting plate.
- Continuously adjustable mounting depth.
- Plastic covers with 90° push-turn closure.
- RAL 7035 cover finish.
- Suitable for cabinets from 200 mm depth.
- EDF profile rails and field connectors included.
- ABB order code 2CPX037828R9999.
Dedicated Tmax Circuit Breaker Installation
The ABB ED630T5 provides a dedicated mounting field for integrating compatible Tmax moulded-case circuit breakers into ABB low-voltage distribution assemblies. Its 500 mm-wide mounting area accommodates Tmax T4 4-pole and Tmax T5 3- or 4-pole configurations while maintaining a coordinated internal cabinet layout.
The combination set is supplied unequipped and is designed to be used together with a compatible distribution panel. It is plugged into the distribution panel at the top or bottom and secured to the cabinet on the opposite side. With its 2 PW width, 3 GU height and 72 space units, the ED630T5 provides a purpose-designed ABB mounting solution for professional circuit-breaker installations.
Typical Applications
- ABB low-voltage distribution cabinets.
- ABB Tmax T4 4-pole circuit-breaker installations.
- ABB Tmax T5 3- and 4-pole circuit-breaker installations.
- Commercial building power distribution.
- Industrial low-voltage distribution systems.
- Electrical panel-building and switchgear assemblies.
