Why Choose the ABB ZL8 Door Earthing Set?
The ABB ZL8 is a 10 mm² door earthing set designed to provide a protective bonding connection for doors on compatible ABB electrical enclosures. It is a dedicated enclosure accessory for ABB TwinLine wall-mounted and floor-standing cabinets, helping integrate the cabinet door into the protective earthing arrangement.

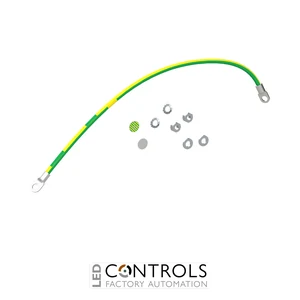

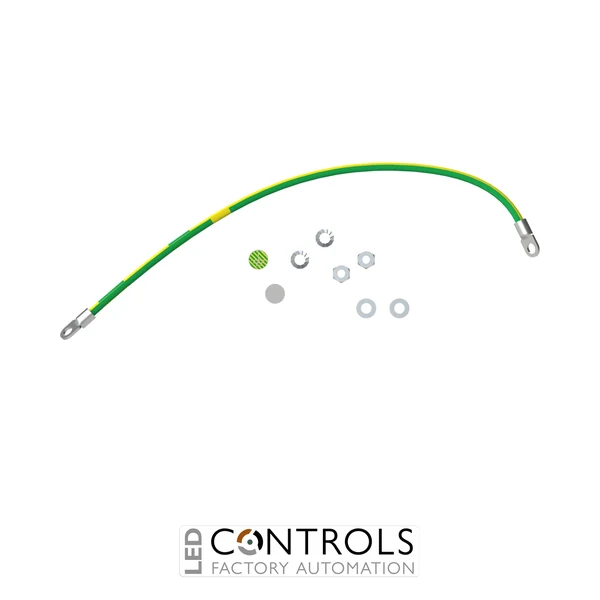

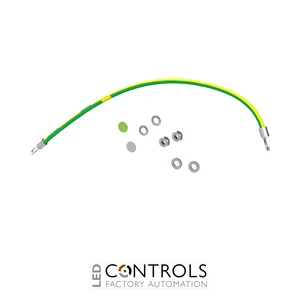

The ZL8 uses a 10 mm² earthing conductor and is supplied with the required mounting material for installation. Its compact assembly measures approximately 400 × 15 × 15 mm, making it suitable for installation between the cabinet structure and door without occupying valuable equipment mounting space.
Designed as an original ABB enclosure accessory, the ZL8 is suitable for TwinLine wall-mounted and floor-standing cabinets and selected compatible ABB standing cabinets. Supplied as one complete set, it provides panel builders with a straightforward manufacturer-matched solution for door protective bonding.
Key Advantages
- Dedicated 10 mm² door earthing set for compatible ABB enclosures.
- Provides a protective bonding connection between the cabinet and door.
- Suitable for ABB TwinLine wall-mounted and floor-standing cabinets.
- Supplied with the required mounting material.
- Compact 400 mm overall width supports unobtrusive cabinet installation.
- Original ABB accessory for coordinated enclosure integration.
- Supplied as a complete 1-piece set.
Key Features
- ABB ZL8 door earthing set.
- 10 mm² conductor cross-section.
- Designed for protective bonding of enclosure doors.
- Suitable for TwinLine wall-mounted cabinets.
- Suitable for TwinLine floor-standing cabinets.
- Mounting material included.
- 400 × 15 × 15 mm nominal external dimensions.
- 1-pole accessory configuration.
- Supplied as 1 piece.
- Country of origin: Germany.
- ABB order code 2CPX038001R9999.
Reliable Door Protective Bonding for ABB Enclosures
Metal enclosure doors may require a dedicated protective bonding connection to maintain electrical continuity with the cabinet's protective earthing arrangement. The ABB ZL8 provides this connection through a 10 mm² earthing conductor, helping panel builders incorporate the door into the enclosure's intended protective bonding system.
The ZL8 is supplied with mounting material and is specifically intended for compatible ABB cabinet systems, including TwinLine wall-mounted and floor-standing enclosures. Its manufacturer-matched design makes it a practical accessory for new cabinet assemblies, modifications and enclosure installations requiring door earthing.
Typical Applications
- Protective earthing of ABB TwinLine cabinet doors.
- Wall-mounted electrical distribution enclosures.
- Floor-standing low-voltage distribution cabinets.
- Commercial electrical distribution assemblies.
- Industrial control and distribution panels.
- Electrical panel-building and switchgear projects.
