Why Choose the ABB ZB19 Cover Profile?

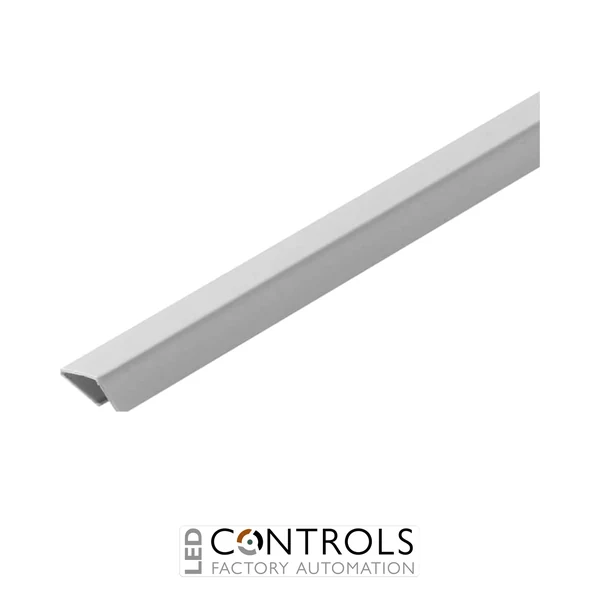

The ABB ZB19 is a purpose-designed cover profile for copper busbars used within ABB electrical distribution and sub-distribution systems. Designed to latch directly onto compatible busbars, it provides a practical protective covering for exposed rail sections within professional low-voltage distribution assemblies.
The ZB19 is suitable for 12 × 5 mm and 12 × 10 mm copper busbars and uses a simple clip-on or latching installation method. This allows the profile to be fitted directly over the compatible copper rail without requiring a complex mounting arrangement, helping panel builders create neat and appropriately covered busbar installations.
Supplied in a 1 m length, the ZB19 measures approximately 1000 mm long × 15 mm high × 14 mm deep. Its plastic construction provides a lightweight and practical solution for covering compatible copper busbars used within ABB low-voltage distribution equipment.
Key Advantages
- Purpose-designed cover profile for copper busbars.
- Compatible with 12 × 5 mm and 12 × 10 mm copper rails.
- Convenient clip-on latching installation.
- Supplied in a practical 1 m length.
- Lightweight plastic construction for electrical distribution applications.
- Designed for integration with ABB low-voltage sub-distribution systems.
Key Features
- ABB ZB19 busbar cover profile.
- Designed for compatible copper busbars.
- Suitable for 12 × 5 mm busbars.
- Suitable for 12 × 10 mm busbars.
- 1000 mm profile length.
- Approximately 15 mm high × 14 mm deep.
- Manufactured from plastic.
- Clip-on / latching installation method.
- Suitable as an accessory for professional electrical distribution assemblies.
Practical Covering for Electrical Busbar Systems
Busbar cover profiles provide a simple method of covering sections of copper rail within electrical distribution equipment. By fitting directly over a compatible busbar, the profile helps create a more organised installation while providing a physical covering over the rail within the completed distribution assembly.
The ABB ZB19 is specifically sized for 12 × 5 mm and 12 × 10 mm copper rails. Its latching design enables straightforward installation, while the 1 m profile length can be used as required when configuring compatible ABB busbar and sub-distribution systems.
Typical Applications
- ABB low-voltage sub-distribution systems.
- Copper busbar installations.
- Commercial electrical distribution boards.
- Industrial electrical distribution assemblies.
- Building services and infrastructure installations.
- Panel-building and switchgear applications using compatible copper rails.
