Why Choose the ABB ZA125 A5 Screw Fixed Plan Pocket Holder?

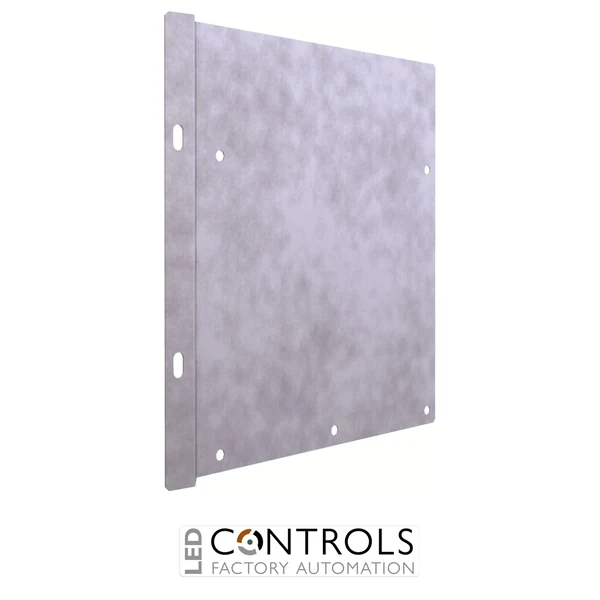

The ABB ZA125 is a purpose-designed plan pocket holder and door fixing accessory for mounting the ABB ZA5 DIN A5 plan pocket inside compatible electrical distribution enclosures. It provides a secure screw-fixed installation onto the door reinforcing elements, creating a practical location for storing circuit diagrams, schedules and other technical documentation.
Designed as an ABB enclosure accessory, the ZA125 provides a robust metal mounting arrangement for the ZA5 DIN A5 plan pocket. Rather than relying solely on an adhesive installation, the holder enables the plan pocket to be mechanically secured to the enclosure door reinforcement structure for a neat and dependable document storage solution.
The ZA125 has overall dimensions of 235 mm × 222 mm × 14 mm and is specified for a field width of 4. Its dedicated compatibility with ABB enclosure systems makes it suitable for professional subdistribution boards where drawings and maintenance documentation need to remain readily accessible.
Key Advantages
- Purpose-designed holder for the ABB ZA5 DIN A5 plan pocket.
- Secure screw-fixed installation onto door reinforcing elements.
- Provides organised storage for circuit diagrams and enclosure documentation.
- Robust metal construction for electrical enclosure applications.
- Compact 235 mm × 222 mm × 14 mm format.
- Genuine ABB enclosure accessory for compatible subdistribution systems.
Key Features
- ABB ZA125 plan pocket holder.
- Designed for the ABB ZA5 DIN A5 plan pocket.
- Screw mounting to enclosure door reinforcing elements.
- Field width 4 enclosure accessory.
- Manufactured from metal.
- Overall dimensions of 235 mm × 222 mm × 14 mm.
- Suitable for circuit diagram and technical document storage arrangements.
- ABB order code 2CPX038472R9999.
Reliable Document Storage for Electrical Enclosures
Keeping circuit diagrams, distribution schedules and maintenance information within an electrical enclosure gives installers and service engineers convenient access to important system documentation. A dedicated plan pocket arrangement also helps prevent drawings and instructions from becoming loose or misplaced during servicing.
The ABB ZA125 provides a mechanically secured mounting point for the ZA5 DIN A5 plan pocket. By screwing the holder to the enclosure door reinforcing elements, it creates a stable and professional document storage arrangement suitable for compatible ABB subdistribution and electrical enclosure systems.
Typical Applications
- ABB subdistribution boards.
- Electrical distribution enclosures.
- Control and automation cabinets.
- DIN A5 circuit diagram storage.
- Electrical schedules and maintenance documentation.
- Commercial and industrial electrical installations.
