Why Choose the ABB ZX21 DIN Rail?

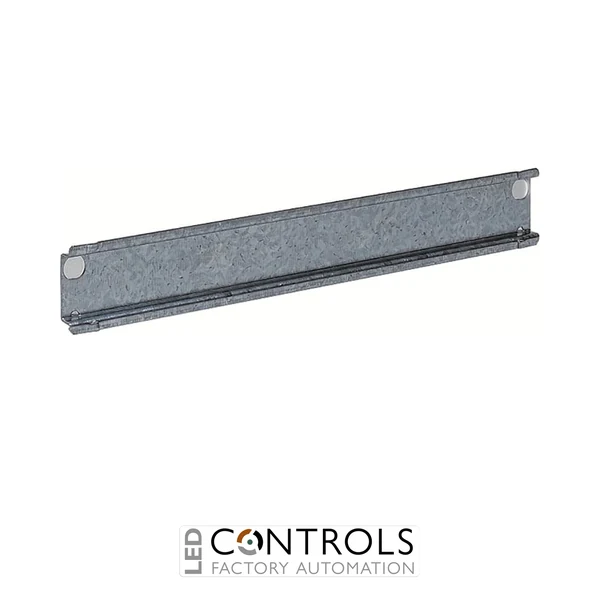

The ABB ZX21 (2CPX039021R9999) is a professional 1-panel-width DIN rail designed for mounting electrical components within compatible ABB distribution systems. Part of the ABB DESUJ Sub Distribution product group, it provides a robust and standardised mounting platform for panel-building and internal expansion applications.
The ZX21 uses a standard 35 × 7.5 mm top-hat profile and has a length of 244 mm, corresponding to a 1 PW field width. Manufactured from 1 mm steel with a Sendzimir-galvanised surface, the rail combines mechanical strength with corrosion-resistant surface protection for professional electrical installations.
Designed specifically for mounting directly onto compatible mounting frames, the ZX21 provides a straightforward way to create a DIN rail mounting level within ABB cabinet assemblies. Its compact dimensions and system compatibility make it suitable for terminal blocks and other compatible DIN rail-mounted electrical equipment.
Key Advantages
- Professional 1 PW DIN rail for ABB distribution systems.
- Standard 35 × 7.5 mm top-hat profile.
- 244 mm length designed for a single-field mounting arrangement.
- Manufactured from durable 1 mm-thick steel.
- Sendzimir-galvanised surface provides corrosion-resistant protection.
- Designed for direct installation onto compatible mounting frames.
- 230 mm central mounting-hole distance supports accurate positioning.
- Suitable for professional sub-distribution, switchboard and panel-building applications.
Key Features
- ABB ZX21 DIN rail.
- 1 PW / single-field width.
- 35 × 7.5 mm DIN top-hat profile.
- 244 mm rail length.
- 1 mm material thickness.
- Manufactured from steel.
- Sendzimir-galvanised surface finish.
- 230 mm central mounting-hole distance.
- Designed for mounting on compatible ABB mounting frames.
- Supplied individually as 1 piece.
Standardised DIN Rail Mounting for ABB Distribution Systems
DIN rails provide the standardised mechanical mounting platform used for a wide range of electrical components within distribution boards and control cabinets. The ABB ZX21 uses the established 35 × 7.5 mm top-hat profile, providing a rigid 244 mm-long mounting rail for compatible DIN rail equipment within a single-field ABB assembly.
Its steel construction, 1 mm material thickness and galvanised surface make the ZX21 suitable for professional panel construction. Designed for direct attachment to the mounting frame, the rail integrates neatly into compatible ABB internal expansion systems and provides a straightforward foundation for organised electrical equipment installation.
Typical Applications
- Electrical sub-distribution boards.
- DIN rail-mounted electrical equipment.
- Terminal block mounting.
- Commercial electrical distribution cabinets.
- Industrial electrical and control panels.
- Switchboard and panel-building applications.
- ABB internal expansion systems.
- Compatible ABB mounting-frame assemblies.
