Why Choose the ABB ZX34 Mounting Rail for NH00 Disconnectors?

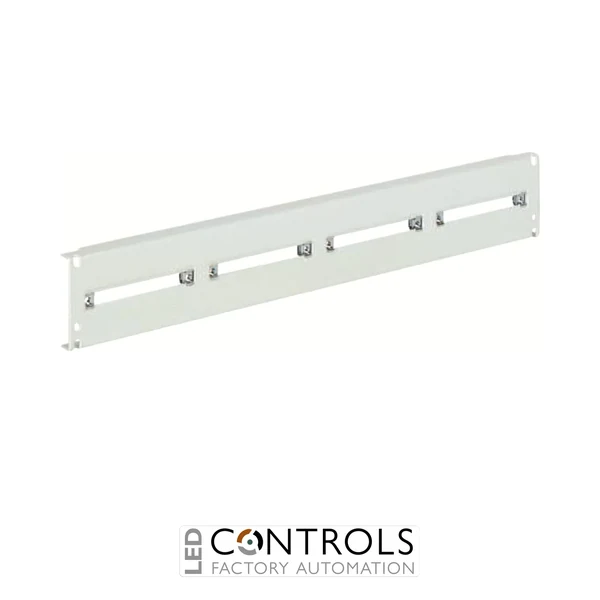

The ABB ZX34 is a purpose-designed mounting cross-beam for NH00 disconnectors used within ABB subdistribution and interior expansion systems. With a two-field-width configuration, it provides the mechanical support required for mounting up to four NH00 disconnectors in compatible electrical distribution assemblies.
Designed for universal installation on ABB sliding-rail technology, the ZX34 allows adaptation to different mounting-hole positions and supports an organised, professional internal assembly. The mounting cross-beam is supplied with the required M6 fastening screws and cage nuts, simplifying installation within compatible mounting structures.
The ZX34 measures 250 mm wide × 100 mm high × 25 mm deep and is suitable for ABB M(B)T236(B) and M(B)T237(B) configurations. Its two-field-width format and dedicated NH00 compatibility make it a practical system component for building structured low-voltage distribution assemblies.
Key Advantages
- Purpose-designed mounting cross-beam for NH00 disconnectors.
- Supports installation of up to four NH00 disconnectors.
- Two-field-width configuration for compatible ABB distribution systems.
- Universal mounting on sliding-rail technology helps accommodate different fastening-hole positions.
- Supplied with M6 fastening screws and cage nuts.
- Designed for compatible M(B)T236(B) and M(B)T237(B) mounting configurations.
Key Features
- ABB ZX34 mounting cross-beam / U-profile.
- Designed for four NH00 disconnectors.
- 2-field-width mounting format.
- Universal installation using sliding-rail technology.
- Includes fastening screws and M6 cage nuts.
- Compatible with M(B)T236(B) and M(B)T237(B).
- Overall dimensions of 250 mm × 100 mm × 25 mm.
- ABB order code 2CPX039034R9999.
Reliable Mounting for NH00 Distribution Equipment
Secure mechanical mounting is essential when constructing low-voltage distribution assemblies. A dedicated cross-beam provides a stable installation point for disconnectors while helping maintain the intended equipment positioning and internal organisation of the distribution system.
The ABB ZX34 is specifically configured for four NH00 disconnectors across a two-field-width arrangement. Its universal sliding-rail installation helps accommodate different fastening-hole positions, while the supplied M6 screws and cage nuts provide the necessary hardware for integration into compatible ABB mounting systems.
Typical Applications
- ABB subdistribution boards.
- NH00 fuse-switch disconnector installations.
- Low-voltage electrical distribution assemblies.
- Commercial and industrial distribution cabinets.
- ABB interior expansion systems.
- M(B)T236(B) and M(B)T237(B) mounting configurations.
