Why Choose the ABB ZX52 M10 Support Insulator?

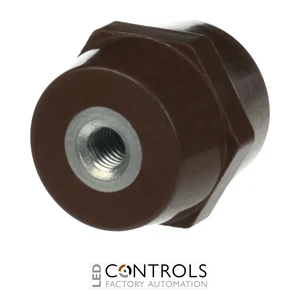

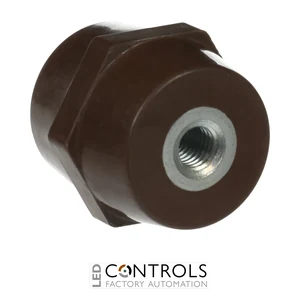

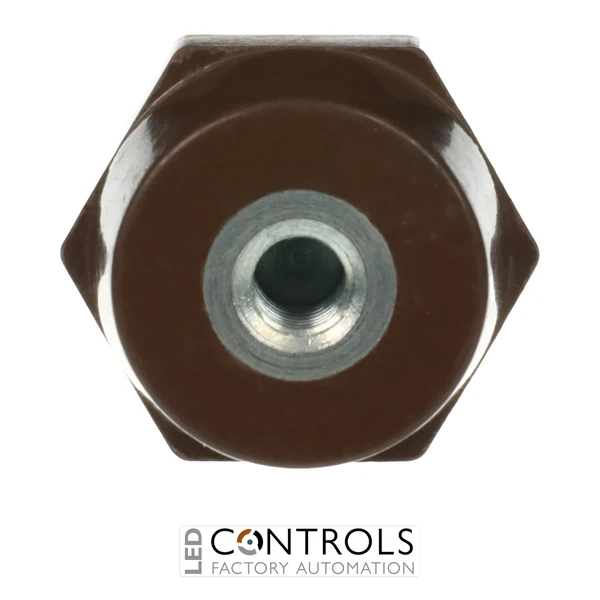

The ABB ZX52 is a robust support insulator with wrench flat designed for insulated mechanical support within electrical distribution and busbar assemblies. Supplied under ABB order code 2CPX039052R9999, it forms part of ABB's sub-distribution system accessories and provides a secure mounting point for compatible busbar arrangements.
The ZX52 has a nominal 40 mm diameter and 40 mm length with M10 threads on both sides. This double-sided threaded configuration allows secure mechanical attachment within compatible electrical assemblies, while the integrated wrench flat assists controlled positioning and tightening during installation.
With a 40 mm wrench size, compact 40 mm × 40 mm support-insulator format and single-piece supply, the ABB ZX52 provides a practical solution for panel builders and electrical installers requiring dependable insulated support in distribution and busbar systems.
Key Advantages
- Purpose-designed support insulator for electrical distribution and busbar systems.
- 40 mm diameter and 40 mm length for compact installation.
- M10 threads on both sides provide secure mechanical fixing.
- Integrated wrench flat with 40 mm wrench size assists installation.
- Provides insulated mechanical support for compatible busbar components.
- Designed for integration into professional electrical distribution assemblies.
Key Features
- ABB ZX52 support insulator.
- 40 mm nominal diameter.
- 40 mm nominal length.
- M10 threaded connection on both sides.
- 40 mm wrench size.
- Support-insulator construction with wrench flat.
- Suitable for busbar and sub-distribution applications.
- Supplied as 1 piece.
Reliable Insulated Support for Electrical Distribution Systems
Support insulators are used in electrical distribution assemblies to provide mechanical support while maintaining electrical separation between conductive components and surrounding structures. The ABB ZX52 combines a compact insulating body with double-sided threaded mounting points, making it suitable for supporting compatible busbar arrangements in professional switchgear and distribution installations.
The M10 threads on both sides enable secure integration into the assembly, while the 40 mm wrench flat provides a convenient means of holding and tightening the component during installation. Its compact dimensions help panel builders create mechanically secure busbar arrangements while making efficient use of available enclosure space.
Typical Applications
- Electrical distribution boards and sub-distribution systems.
- Busbar support assemblies.
- ABB CombiLine distribution installations.
- Switchgear and control-panel construction.
- Insulated mounting of compatible conductive components.
- Panel-building applications requiring M10 support points.
