Why Choose the ABB ZX69 Vertical Partition?

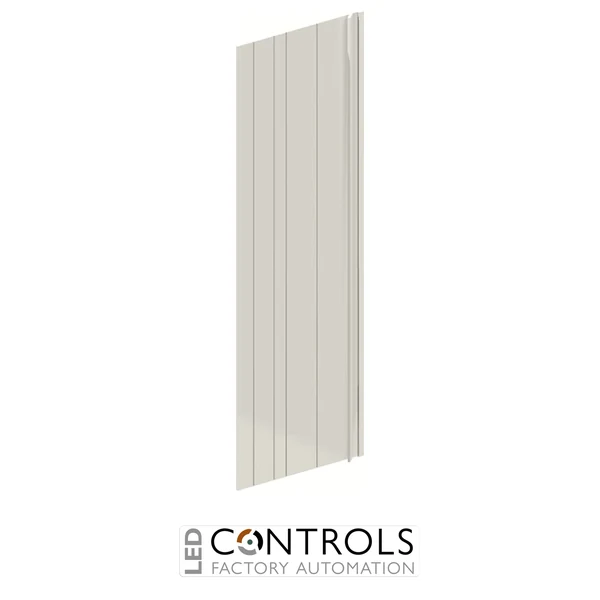

The ABB ZX69 (2CPX039069R9999) is a dedicated vertical plastic partition, construction height 00, designed for separation between adjacent modules within compatible ABB electrical distribution systems. Part of the ABB DESUJ Sub Distribution product group, it provides a simple physical barrier between neighbouring distribution and meter-panel sections.
The ZX69 has a construction height of 3 GU / OH00 and nominal dimensions of 450 mm high × 114.5 mm wide. Manufactured from plastic with an untreated surface and a light-grey colour similar to RAL 7035, it integrates neatly with compatible ABB CombiLine N internal expansion assemblies.
Installation is straightforward, with the partition inserted into the cover holder of the adjacent module. The ZX69 is intended for compartmentalisation rather than arc-fault containment and is therefore not arc-resistant, making it important to use the component only where its specified separation function is appropriate.
Key Advantages
- Purpose-designed vertical partition for ABB sub-distribution systems.
- Provides physical separation between adjacent modules, distribution panels and meter panels.
- OH00 / 3 GU construction height.
- Nominal height of 450 mm.
- Compact 114.5 mm width.
- Light-grey finish similar to RAL 7035 complements compatible ABB assemblies.
- Simple installation into the adjacent module's cover holder.
- Lightweight plastic construction designed specifically for ABB CombiLine N internal expansion systems.
Key Features
- ABB ZX69 vertical partition.
- Construction height OH00.
- 3 grid units.
- 450 mm nominal height.
- 114.5 mm nominal width.
- Manufactured from plastic.
- Untreated surface finish.
- Colour similar to RAL 7035 light grey.
- Designed for separation from an adjacent module, distribution panel or meter panel.
- Inserted into the cover holder of the neighbouring module.
- Not arc-resistant.
- Supplied individually as 1 piece.
Practical Vertical Separation for ABB Distribution Systems
Internal partitions provide a straightforward way to separate neighbouring functional areas within modular electrical distribution assemblies. The ABB ZX69 creates a vertical barrier between adjacent modules, distribution fields or meter fields, helping panel builders maintain a clearly divided internal arrangement within compatible ABB CombiLine N systems.
At 450 mm high, the ZX69 corresponds to the OH00 / 3 GU construction height and installs directly into the cover holder of the neighbouring module. Its plastic construction and light-grey appearance provide a system-compatible solution for compartment separation, although the partition is expressly designed as a standard divider and does not provide arc-resistant separation.
Typical Applications
- Electrical sub-distribution boards.
- ABB CombiLine N internal expansion systems.
- Separation between adjacent electrical modules.
- Distribution-panel compartment separation.
- Meter-panel compartment separation.
- Commercial electrical distribution cabinets.
- Industrial electrical distribution assemblies.
- Switchboard and panel-building applications.
