Why Choose the ABB ZX70 Vertical Partition?

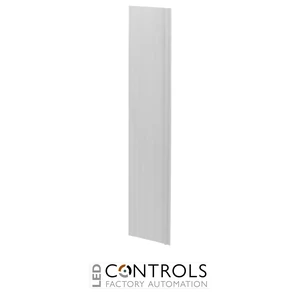

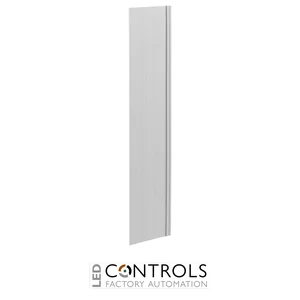

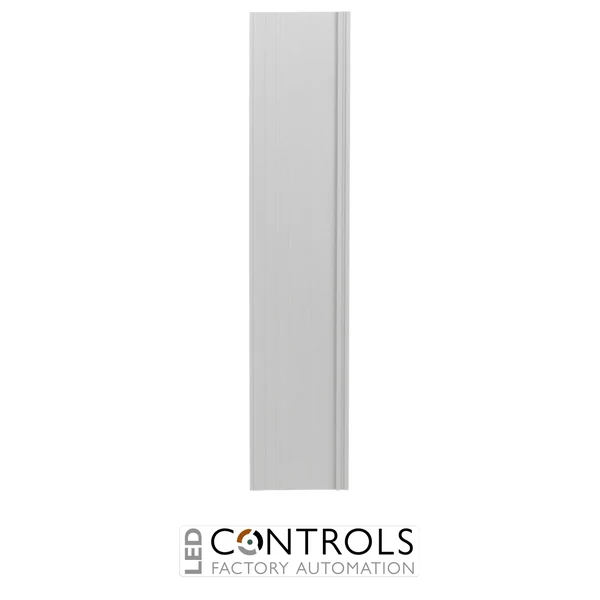

The ABB ZX70 (2CPX039070R9999) is a dedicated vertical plastic partition, construction height OH0, designed for separating adjacent functional sections within compatible ABB electrical distribution systems. Part of the ABB DESUJ Sub Distribution product group and the CombiLine N internal expansion system, it provides a simple physical barrier between neighbouring modules, distribution panels and meter panels.
The ZX70 corresponds to construction height OH0 / 4 GU and has a nominal height of 600 mm and width of 114.5 mm. Manufactured from plastic with an untreated surface and a light-grey finish similar to RAL 7035, it integrates neatly with compatible ABB cabinet and internal expansion assemblies.
Installation is straightforward, with the partition designed to slide into the cover holder of the adjacent module. The ZX70 is intended for compartment separation rather than arc-fault containment and is therefore not arc-resistant, making it suitable where standard physical separation between neighbouring functional areas is required.
Key Advantages
- Purpose-designed vertical partition for compatible ABB sub-distribution systems.
- Provides physical separation between adjacent modules, distribution panels and meter panels.
- OH0 / 4 GU construction height.
- 600 mm nominal height for taller internal distribution arrangements.
- Compact 114.5 mm width.
- Light-grey finish similar to RAL 7035 complements compatible ABB assemblies.
- Simple installation into the cover holder of the adjacent module.
- Lightweight plastic construction designed for ABB CombiLine N internal expansion systems.
Key Features
- ABB ZX70 vertical partition.
- Construction height OH0.
- 4 grid units.
- 600 mm nominal height.
- 114.5 mm nominal width.
- Manufactured from plastic.
- Untreated surface finish.
- Light-grey colour similar to RAL 7035.
- Designed for separation from adjacent modules, distribution panels and meter panels.
- Inserted into the cover holder of the neighbouring module.
- No connector openings.
- Not arc-resistant.
- Supplied individually as 1 piece.
Practical OH0 Vertical Separation for ABB Distribution Systems
Internal partitions provide a straightforward method of separating neighbouring functional areas within modular electrical distribution assemblies. The ABB ZX70 creates a vertical physical barrier between adjacent modules, distribution fields or meter fields, helping panel builders maintain clearly divided internal sections within compatible ABB CombiLine N systems.
At 600 mm high, the ZX70 corresponds to the OH0 / 4 GU construction height and installs directly into the cover holder of the neighbouring module. Its plastic construction and light-grey appearance provide a system-compatible solution for standard compartment separation, while its non-arc-resistant design makes its intended function clear for correct panel specification.
Typical Applications
- Electrical sub-distribution boards.
- ABB CombiLine N internal expansion systems.
- Separation between adjacent electrical modules.
- Distribution-panel compartment separation.
- Meter-panel compartment separation.
- Commercial electrical distribution cabinets.
- Industrial electrical distribution assemblies.
- Switchboard and panel-building applications.
