Why Choose the ABB ZX75 Vertical Partition OH5?

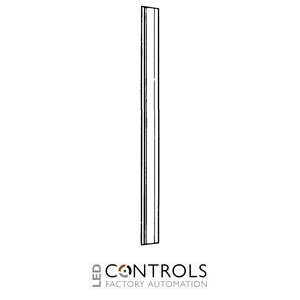

The ABB ZX75 is a vertical plastic partition for electrical sub-distribution systems, designed to provide separation between adjacent modules, distribution panels and meter panels. Supplied under ABB order code 2CPX039075R9999, it forms part of the ABB DESUJ Sub Distribution and CombiLine N interior fitting system.
Designed for overall height 5 (9 RE) applications, the ZX75 provides a dedicated physical partition within compatible distribution assemblies. The partition is inserted into the cover holder of the neighbouring module, supporting an organised installation without requiring a separate complex mounting arrangement.
The ZX75 is manufactured from plastic with a light-grey finish similar to RAL 7035. It has a nominal height of 1350 mm and width of 114.5 mm, making it suitable for full-height separation in compatible OH5 / 9 RE CombiLine N configurations. The partition is not designed as a fault-arc-proof barrier.
Key Advantages
- Purpose-designed vertical partition for ABB sub-distribution assemblies.
- Suitable for overall height 5 (9 RE) configurations.
- Provides separation from adjacent modules, distribution panels and meter panels.
- Plastic construction provides a lightweight and practical partitioning solution.
- Light-grey finish similar to RAL 7035 complements compatible distribution equipment.
- Designed for straightforward insertion into the neighbouring module's cover holder.
Key Features
- ABB ZX75 vertical partition.
- OH5 / overall height 5 configuration.
- 9 RE height classification.
- 1350 mm nominal height.
- 114.5 mm nominal width.
- Manufactured from plastic.
- Light-grey colour similar to RAL 7035.
- Designed for ABB CombiLine N interior fitting systems.
- Not fault-arc-proof.
- Supplied as 1 piece.
Reliable Partitioning for Electrical Distribution Systems
Physical partitioning helps organise electrical distribution assemblies by separating neighbouring functional areas and equipment sections. The ABB ZX75 is specifically designed to provide this separation within compatible CombiLine N installations, including between modules, distribution panels and meter panels.
Its OH5 / 9 RE configuration and 1350 mm nominal height make the ZX75 suitable for corresponding full-height sections. Installation is simplified by sliding the partition into the cover holder of the neighbouring module, providing a practical means of incorporating internal separation into compatible ABB distribution assemblies.
Typical Applications
- ABB CombiLine N interior fitting systems.
- Electrical sub-distribution boards.
- Separation between adjacent distribution modules.
- Distribution-panel partitioning.
- Meter-panel partitioning.
- Electrical panel and switchgear assembly.
