Why Choose the ABB ZB1 Small Support for Device?

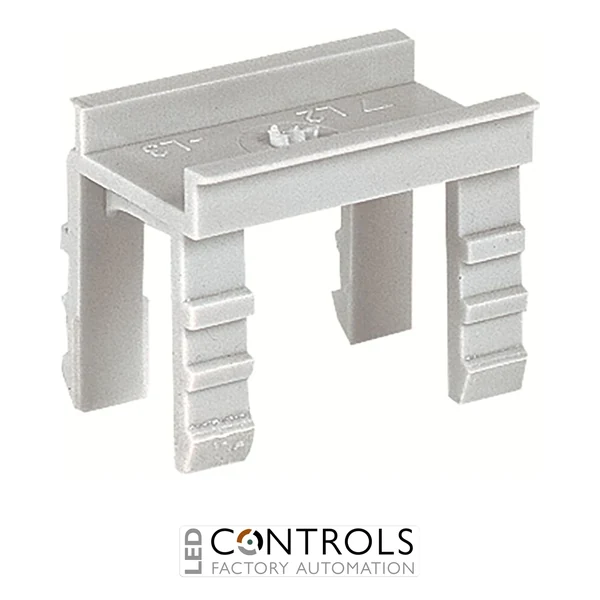

The ABB ZB1 is a compact device support for meter-panel busbar systems, designed to provide a practical mounting point for switches and control wiring terminals within compatible ABB electrical distribution assemblies. The support clips directly onto the busbar system, simplifying the installation of auxiliary devices within the meter field.
Designed for use with 12 × 5 mm copper busbars, the ZB1 has a compact width of 53 mm. Its snap-on mounting arrangement allows the support to be positioned on the compatible busbar system without requiring a separate large mounting structure, helping maintain an organised internal distribution-board layout.
Manufactured from plastic, the ZB1 measures 53 mm wide × 36 mm high × 40 mm deep. It is supplied as a single device support and provides a genuine ABB solution for mounting switches and control wiring terminals in compatible meter-panel and subdistribution installations.
Key Advantages
- Compact device support for ABB meter-panel busbar systems.
- Designed for 12 × 5 mm copper busbars.
- Snap-on installation provides straightforward attachment to the busbar system.
- Suitable for mounting switches and control wiring terminals.
- Compact 53 mm width helps make efficient use of internal enclosure space.
- Genuine ABB accessory for compatible electrical distribution assemblies.
Key Features
- ABB ZB1 small device support.
- Designed to snap onto the busbar system in the meter field.
- Compatible with Cu 12 × 5 mm busbars.
- Suitable for installing switches and control wiring terminals.
- Manufactured from plastic.
- 53 mm wide compact mounting format.
- Overall dimensions of 53 × 36 × 40 mm.
- Supplied as 1 piece.
- ABB order code 2CPX039121R9999.
Reliable Device Mounting for Meter-Panel Busbar Systems
Compact device supports provide convenient mounting locations for auxiliary electrical equipment within distribution assemblies where conventional mounting space may be limited. By mounting directly onto the busbar system, the support helps create an orderly arrangement for switches, terminals and associated control wiring.
The ABB ZB1 is specifically designed to snap onto a compatible 12 × 5 mm copper busbar system within the meter field. Its compact 53 mm width and dedicated device-mounting function make it a practical accessory for professional ABB meter-panel and low-voltage distribution installations.
Typical Applications
- ABB meter-panel assemblies.
- Subdistribution boards.
- Mounting switches within meter fields.
- Mounting control wiring terminals.
- 12 × 5 mm copper busbar systems.
- Commercial and industrial electrical distribution assemblies.
