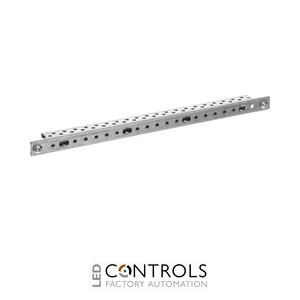

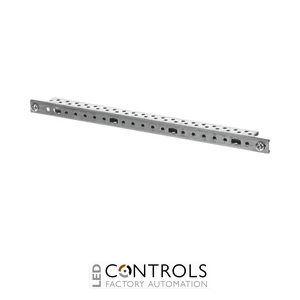

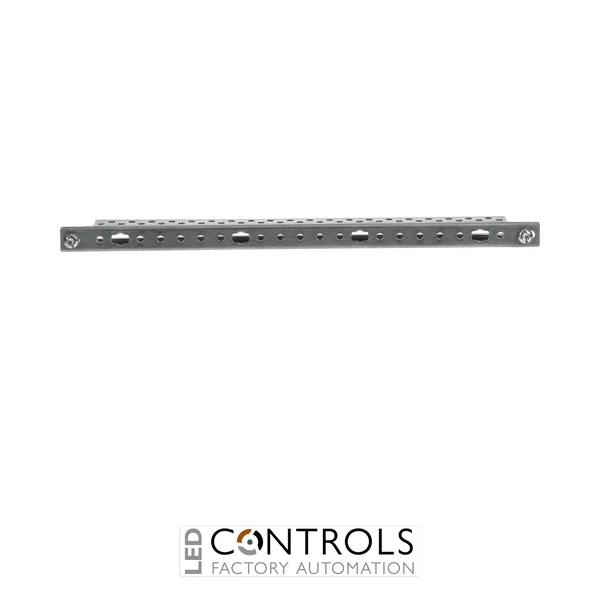

2CPX039208R9999 ABB ED8 EDF Vertical Profile Rail 2RE 300 mm

2CPX039208R9999 ABB ED8 EDF Vertical Profile Rail 2RE 300 mm

ABB ED8 is a 2 RE, 300 mm galvanised steel vertical EDF profile rail supplied with fastening screws for constructing CombiLine mounting frames and installing compatible distribution modules up to 400 A.

SKU: 2CPX039208R9999Alt SKU: ED8MPN: 2CPX039208R9999
Price
List Price £15.43 ex VAT
Your Price (ex VAT)
£15.43
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £15.43
Trade pricing is personalised to your account

Manufacturer Lead Time

£15.43

Why Choose the ABB ED8 EDF Vertical Profile Rail 2RE?

The ABB ED8 is a vertical EDF profile rail designed for constructing modular electrical distribution assemblies using the ABB CombiLine interior fitting system. Supplied under ABB order code 2CPX039208R9999, the ED8 provides the vertical supporting structure required for mounting compatible distribution modules within electrical cabinets and panel assemblies.

Designed for a height of 2 RE (300 mm), the ED8 is supplied as an unassembled kit and includes the required fastening screws. The vertical EDF profile rail is prepared for receiving compatible modules and supports the construction of modular distribution arrangements rated up to 400 A.

Manufactured from galvanised steel, the ABB ED8 provides a durable structural mounting component for professional panel building. Its dedicated EDF profile format enables integration with compatible mounting-frame components, transverse profile rails and ABB CombiLine distribution modules.

Key Advantages

  • Purpose-designed vertical EDF profile rail for modular distribution assemblies.
  • 2 RE / 300 mm height for compatible CombiLine configurations.
  • Suitable for setting up compatible modules rated up to 400 A.
  • Supplied with fastening screws for installation.
  • Durable galvanised steel construction.
  • Designed for integration with the ABB EDF mounting-frame and CombiLine interior fitting system.

Key Features

  • ABB ED8 vertical EDF profile rail.
  • 2 RE height classification.
  • 300 mm nominal height.
  • Designed for modules up to 400 A.
  • Manufactured from steel.
  • Galvanised surface finish.
  • Supplied as an unassembled kit.
  • Includes fastening screws.
  • Compatible with the ABB EDF mounting-frame system.
  • Supplied as 1 piece.

Reliable Structural Support for Modular Distribution Assemblies

Vertical EDF profile rails form part of the structural mounting framework used to arrange compatible modules within modular electrical distribution systems. The ABB ED8 provides a dedicated 300 mm vertical mounting profile prepared for receiving modules, helping panel builders establish a secure and organised internal framework for distribution equipment.

Within the ABB CombiLine system, EDF profile rails can be combined with compatible transverse profiles and other mounting-frame components to create the required field arrangement. The ED8's 2 RE format, galvanised steel construction and included fastening screws make it a practical system component for building distribution assemblies with modules rated up to 400 A.

Typical Applications

  • ABB CombiLine interior fitting systems.
  • EDF mounting-frame construction.
  • Electrical sub-distribution boards.
  • Modular low-voltage distribution assemblies.
  • Switchgear and control-panel construction.
  • Mounting frameworks for compatible modules up to 400 A.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Mounting / Expansion Module
Product Series S&J CombiLine N
Series / system CombiLine Interior Fittings
Order code 2CPX039208R9999
Product type Vertical EDF profile rail
Product group DESUJ Sub Distribution
Height classification 2 RE
Nominal height 300 mm
Material Steel
Surface finish Galvanised
Mounting method Screw mounting
Module application Modules up to 400 A
Delivery form Kit, unassembled
Fastening screws Included
Quantity 1 piece
Net weight approx. 0.19 kg
EAN 4011617392088

Frequently Asked Questions

What is the ABB ED8 used for?

The ABB ED8 is a vertical EDF profile rail used to construct compatible mounting frameworks for modular electrical distribution equipment within ABB CombiLine assemblies.

What height is the ABB ED8 profile rail?

The ED8 has a nominal height of 300 mm, corresponding to a 2 RE height classification.

What module rating can the ABB ED8 support?

The ED8 vertical EDF profile rail is designed for setting up compatible distribution modules rated up to 400 A.

What material is the ABB ED8 manufactured from?

The ED8 is manufactured from steel with a galvanised surface finish for durable use within electrical distribution assemblies.

Are fastening screws included with the ABB ED8?

Yes. The ABB ED8 is supplied as an unassembled kit and includes fastening screws for installation within the compatible EDF mounting-frame system.

Trusted by Electrical Panel Builders Worldwide

ABB CombiLine mounting components such as the ED8 vertical EDF profile rail provide panel builders and electrical installers with a coordinated structural system for constructing organised, secure and professional modular electrical distribution assemblies.
