Why Choose the ABB ED9 EDF Vertical Profile Rail 3RE?

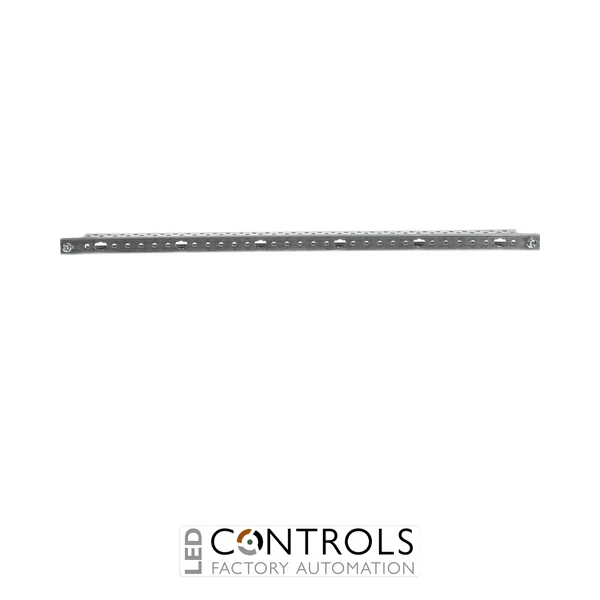

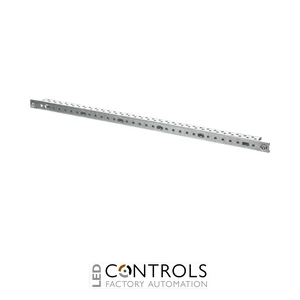

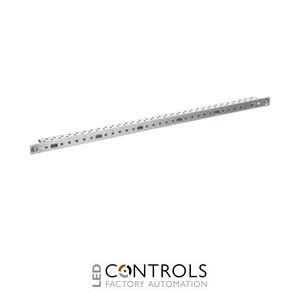

The ABB ED9 is a vertical EDF profile rail designed for constructing modular electrical distribution assemblies using the ABB CombiLine interior fitting system. Supplied under ABB order code 2CPX039209R9999, the ED9 provides a dedicated structural mounting profile for compatible distribution modules and equipment.
Designed for a height of 3 RE (450 mm), the ED9 is supplied as an unassembled kit complete with fastening screws. It is specifically designed for setting up compatible modules rated up to 400 A and is suitable for integration with the ABB EDF mounting-frame system.
Manufactured from galvanised steel, the ABB ED9 combines mechanical strength with a compact system-specific profile. Its 450 mm length and vertical mounting orientation make it a practical structural component for professional switchboard, panel and sub-distribution construction.
Key Advantages
- Purpose-designed vertical EDF profile rail for modular distribution assemblies.
- 3 RE / 450 mm height for compatible CombiLine configurations.
- Suitable for constructing compatible module arrangements rated up to 400 A.
- Supplied with fastening screws for straightforward installation.
- Robust galvanised steel construction for professional panel building.
- Designed for direct integration with the compatible ABB EDF mounting-frame system.
Key Features
- ABB ED9 vertical EDF profile rail.
- 3 RE height classification.
- 450 mm profile length.
- 20 mm profile height.
- Designed for compatible modules up to 400 A.
- Manufactured from steel.
- Galvanised surface finish.
- Screw-fixing installation.
- Supplied as an unassembled kit with fastening screws.
- Suitable for the ABB EDF mounting-frame system.
Reliable Structural Support for Modular Distribution Assemblies
EDF profile rails provide the structural framework required to install compatible modules within modular electrical distribution systems. The ABB ED9 provides a 450 mm vertical mounting profile for a 3 RE arrangement, enabling panel builders to establish an organised and mechanically secure internal framework for distribution equipment.
As part of the ABB CombiLine system, the ED9 can be integrated with compatible EDF mounting-frame components to construct the required distribution field. Its galvanised steel construction, screw-fixing arrangement and included fastening hardware make it suitable for professional assemblies incorporating compatible modules rated up to 400 A.
Typical Applications
- ABB CombiLine interior fitting systems.
- EDF mounting-frame construction.
- Electrical sub-distribution boards.
- Modular low-voltage distribution assemblies.
- Switchgear and electrical panel construction.
- Mounting frameworks for compatible modules up to 400 A.
