Why Choose the ABB ED11 EDF Vertical Profile Rail?

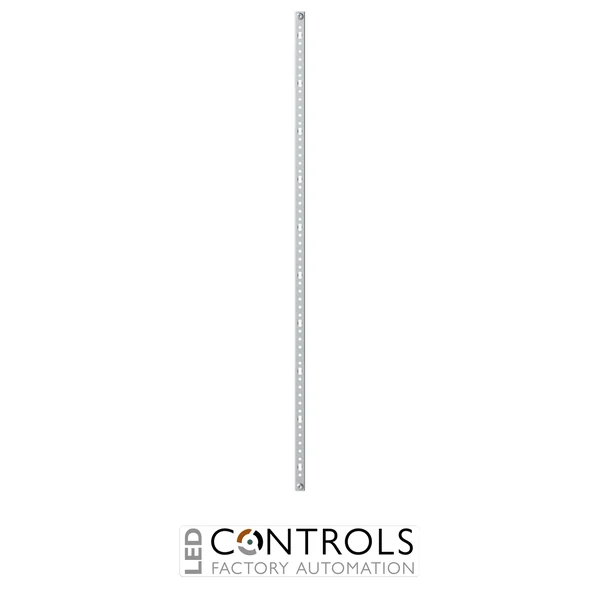

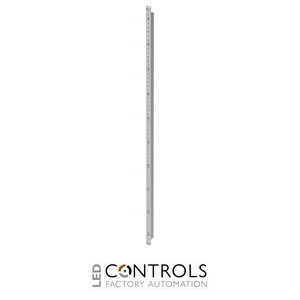

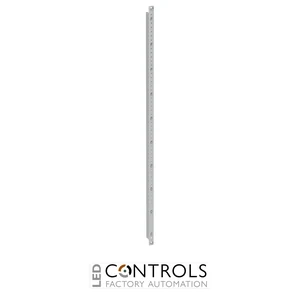

The ABB ED11 is a purpose-designed EDF vertical profile rail for use within compatible ABB subdistribution assemblies. Supplied under ABB order code 2CPX039211R9999, it provides a structured vertical mounting element for the installation and organisation of compatible internal distribution components.
Designed in a 5RE configuration, the ED11 forms part of ABB’s modular EDF installation system. Its vertical profile format supports orderly panel construction and provides a defined structural mounting position within compatible electrical distribution assemblies.
As part of ABB’s DESUJ Sub Distribution product group, the ED11 is intended for professional distribution board construction, modification and maintenance. Its dedicated ABB design enables straightforward integration wherever an EDF vertical profile rail with a 5RE configuration is specified.
Key Advantages
- Purpose-designed EDF vertical profile rail for ABB subdistribution systems.
- 5RE configuration for compatible modular distribution assemblies.
- Provides structured vertical support for compatible internal components.
- Helps maintain an organised and consistent distribution panel layout.
- Suitable for professional panel-building, modification and maintenance.
- Designed for integration with compatible ABB EDF system components.
Key Features
- ABB ED11 EDF vertical profile rail.
- 5RE configuration.
- Vertical profile design for distribution panel construction.
- Supports modular internal equipment arrangements.
- Designed for compatible ABB subdistribution assemblies.
- Part of the ABB DESUJ Sub Distribution product group.
- ABB order code 2CPX039211R9999.
Structured Support for EDF Distribution Assemblies
Profile rails provide structural mounting positions within modular electrical distribution systems, helping establish an organised framework for compatible components. Vertical profiles support defined component positioning and provide a practical foundation for constructing professional distribution assemblies.
The ABB ED11 is specifically designed as an EDF vertical profile rail with a 5RE configuration. It is suitable for new distribution panel construction as well as modification or maintenance work where the specified ED11 profile rail is required.
Typical Applications
- ABB EDF distribution assemblies.
- Low-voltage subdistribution panels.
- Modular distribution board construction.
- Internal component mounting structures.
- Commercial electrical distribution systems.
- Panel-building and maintenance applications.
