Why Choose the ABB ED12 EDF Vertical Profile Rail?

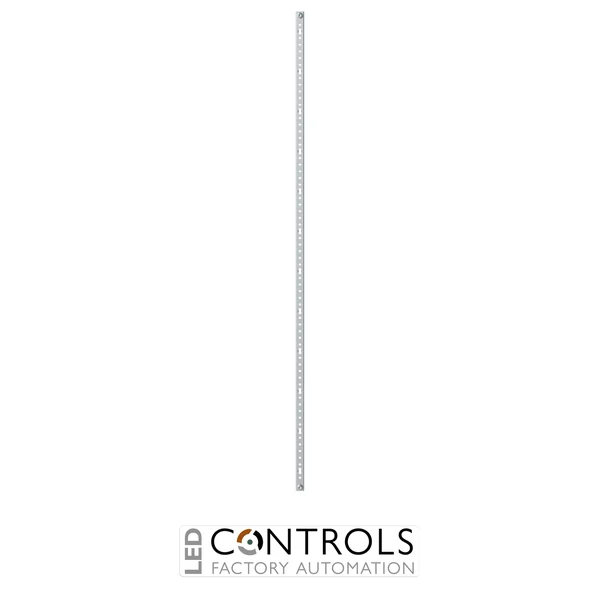

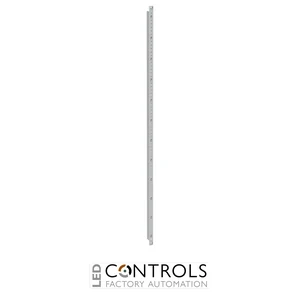

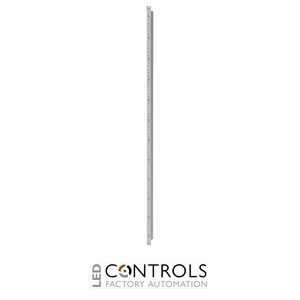

The ABB ED12 is an EDF vertical profile rail designed for the internal mounting and support of compatible components within ABB low-voltage sub-distribution systems. With ABB order code 2CPX039212R9999, the ED12 provides a dedicated structural element for professional electrical distribution and panel-building installations.
Designed around the ABB EDF profile system, the ED12 provides a standardised vertical mounting interface for compatible interior fittings and distribution components. Its profile-rail construction helps panel builders create organised, modular assemblies while maintaining compatibility with the corresponding ABB sub-distribution platform.
The ED12 is specified for a 6 RE configuration, making it suitable for corresponding EDF installation arrangements. As a dedicated ABB system component, it is ideal for new distribution assemblies as well as compatible enclosure modifications, extensions and replacement applications.
Key Advantages
- Purpose-designed vertical profile rail for ABB EDF systems.
- 6 RE configuration for compatible distribution assemblies.
- Provides structural support for compatible internal mounting components.
- Supports organised and modular low-voltage panel construction.
- Designed for straightforward integration with compatible ABB interior fitting systems.
- Genuine ABB component for professional sub-distribution applications.
Key Features
- ABB ED12 EDF vertical profile rail.
- 6 RE size.
- Vertical mounting orientation.
- Designed for the ABB EDF profile system.
- Suitable for compatible low-voltage sub-distribution assemblies.
- Provides a mounting structure for compatible interior fitting components.
- Suitable for professional panel-building and electrical distribution applications.
Modular Support for ABB Electrical Distribution Systems
Profile rails form part of the internal supporting structure used to install electrical distribution components within modular cabinets and enclosures. A correctly matched profile system provides defined mounting positions for compatible interior fittings, helping panel builders create secure, organised and serviceable low-voltage distribution assemblies.
The ABB ED12 is designed specifically for the EDF system and provides a vertical profile rail in a 6 RE configuration. Its system-specific design makes it suitable for compatible ABB distribution assemblies where a genuine EDF mounting profile is required.
Typical Applications
- ABB EDF interior fitting systems.
- Low-voltage electrical sub-distribution cabinets.
- Commercial electrical distribution boards.
- Industrial electrical distribution assemblies.
- Building services and infrastructure installations.
- Panel-building, extension and replacement applications using compatible ABB components.
