Why Choose the ABB ED14 EDF Vertical Profile Rail 8RE?

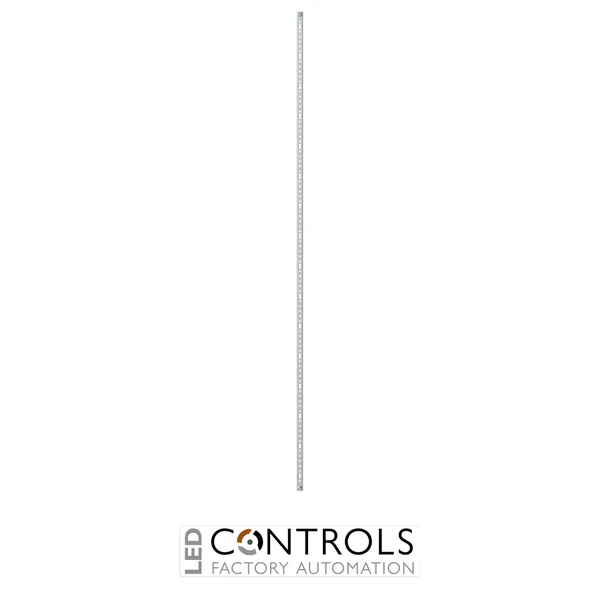

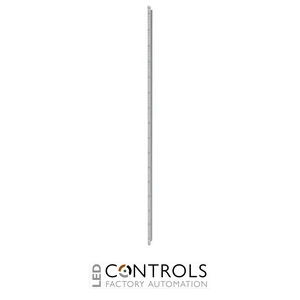

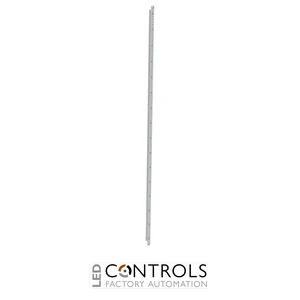

The ABB ED14, order code 2CPX039214R9999, is a vertical EDF profile rail designed for constructing mounting frames within ABB low-voltage sub-distribution systems. As part of the ABB DESUJ Sub Distribution product group and CombiLine system, the ED14 provides a robust structural mounting component for professional electrical distribution assemblies.
Designed for 8 RE installations, the ED14 has a rail length of 1200 mm and is suitable for building module arrangements rated up to 400 A. The profile is supplied as an unassembled kit with fastening screws and is designed specifically for use with compatible ABB EDF mounting frames.
Manufactured from steel with a galvanised surface, the ED14 provides the mechanical strength required for dependable panel construction. Its vertical screw-mounted format, compact 16 × 20 mm profile and system-specific design make it suitable for constructing organised and durable ABB electrical distribution assemblies.
Key Advantages
- Purpose-designed vertical EDF profile rail for ABB distribution systems.
- 8 RE / 1200 mm format for compatible mounting-frame configurations.
- Suitable for constructing module assemblies rated up to 400 A.
- Robust steel construction with galvanised surface.
- Supplied with fastening screws for straightforward installation.
- Designed for integration with compatible ABB EDF mounting frames.
Key Features
- ABB ED14 vertical EDF profile rail.
- ABB order code 2CPX039214R9999.
- 8 RE configuration.
- 1200 mm rail length.
- Suitable for module assemblies up to 400 A.
- Manufactured from steel.
- Galvanised surface finish.
- Vertical installation with screw mounting.
- Supplied as an unassembled kit including fastening screws.
- Designed for compatible ABB EDF mounting-frame systems.
Reliable Structural Support for ABB EDF Mounting Frames
Vertical EDF profile rails form part of the structural framework used to install electrical modules securely within compatible ABB distribution assemblies. The ED14 provides a 1200 mm vertical mounting profile for an 8 RE configuration, helping panel builders create rigid and accurately arranged internal mounting structures.
With its steel construction, galvanised finish and suitability for module assemblies up to 400 A, the ED14 is engineered for professional electrical panel construction. Its compatibility with the ABB EDF mounting-frame system makes it a practical system component for panel builders, switchboard manufacturers and electrical contractors using ABB CombiLine distribution equipment.
Typical Applications
- ABB EDF mounting-frame construction.
- Low-voltage electrical distribution boards.
- CombiLine distribution assemblies.
- Commercial and industrial sub-distribution systems.
- Electrical cabinet and switchboard construction.
- Panel building and distribution-board manufacturing.
