Why Choose the ABB ED15 EDF Vertical Profile Rail 9RE?

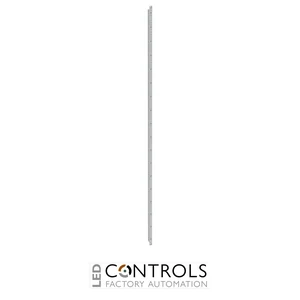

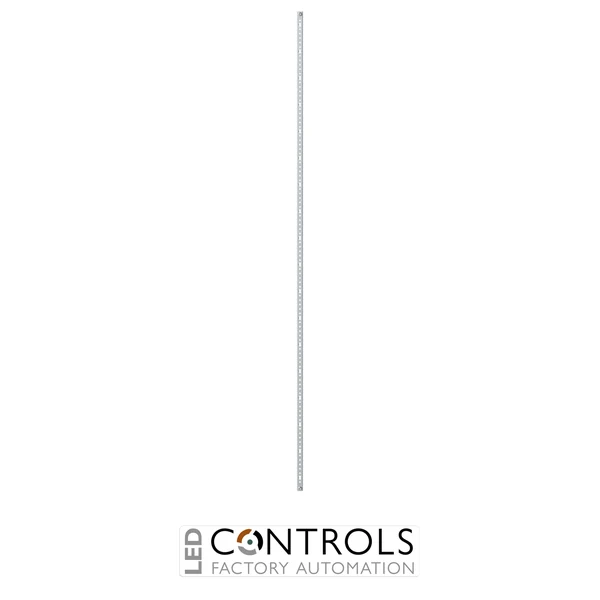

The ABB ED15, order code 2CPX039215R9999, is a vertical EDF profile rail designed for constructing mounting frames within ABB low-voltage sub-distribution systems. As part of the ABB DESUJ Sub Distribution product group and CombiLine system, the ED15 provides a robust structural mounting component for professional electrical distribution assemblies.
Designed for 9 RE installations, the ED15 has a rail length of 1350 mm and is intended for constructing module arrangements rated up to 400 A. The profile is supplied as an unassembled kit including fastening screws and is specifically designed for use with compatible ABB EDF mounting frames.
Manufactured from steel with a galvanised surface, the ED15 provides the mechanical strength and durability required for professional panel construction. Its vertical screw-mounted configuration and 20 mm profile height make it a system-compatible solution for building organised ABB electrical distribution assemblies.
Key Advantages
- Purpose-designed vertical EDF profile rail for ABB distribution systems.
- 9 RE / 1350 mm format for compatible mounting-frame configurations.
- Suitable for constructing module assemblies rated up to 400 A.
- Robust steel construction with galvanised surface.
- Supplied with fastening screws for straightforward assembly.
- Designed specifically for integration with compatible ABB EDF mounting frames.
Key Features
- ABB ED15 vertical EDF profile rail.
- ABB order code 2CPX039215R9999.
- 9 RE configuration.
- 1350 mm rail length.
- Suitable for module assemblies up to 400 A.
- Manufactured from steel.
- Galvanised surface finish.
- 20 mm profile height.
- Vertical installation with screw mounting.
- Supplied as an unassembled kit including fastening screws.
- Designed for compatible ABB EDF mounting-frame systems.
Reliable Structural Support for ABB EDF Mounting Frames
Vertical EDF profile rails form part of the structural framework used to position and support electrical modules within compatible ABB distribution assemblies. The ED15 provides a 1350 mm vertical profile for a 9 RE configuration, helping panel builders create rigid and accurately arranged internal mounting structures.
With its steel construction, galvanised finish and suitability for module assemblies up to 400 A, the ED15 is engineered for professional electrical panel construction. Its compatibility with the ABB EDF mounting-frame system makes it a practical component for panel builders, switchboard manufacturers and electrical contractors working with ABB CombiLine distribution equipment.
Typical Applications
- ABB EDF mounting-frame construction.
- Low-voltage electrical distribution boards.
- CombiLine distribution assemblies.
- Commercial and industrial sub-distribution systems.
- Electrical cabinet and switchboard construction.
- Panel building and distribution-board manufacturing.
