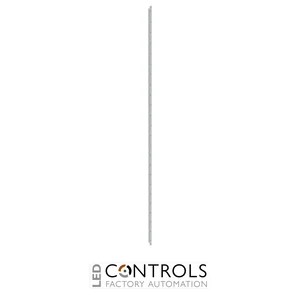

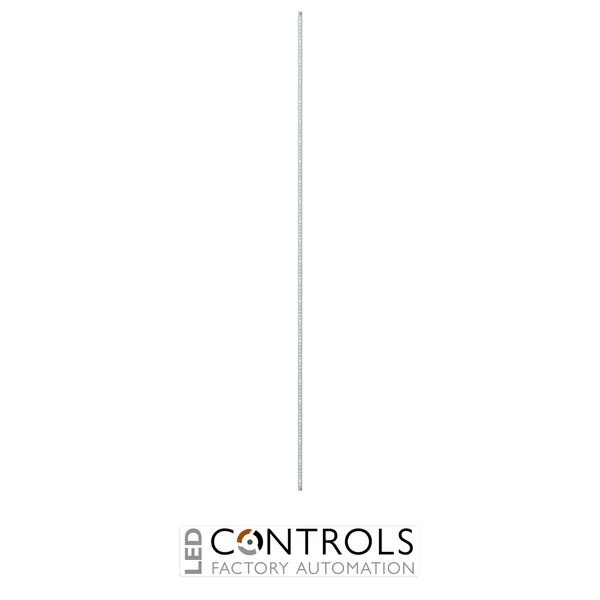

2CPX039216R9999 ABB ED18 EDF Vertical Profile Rail 12RE 1800 mm

2CPX039216R9999 ABB ED18 EDF Vertical Profile Rail 12RE 1800 mm

ABB ED18 is a 12 RE, 1800 mm vertical EDF profile rail for the CombiLine mounting system, designed to support touch-protection covers in compatible free arrangement distribution assemblies.

SKU: 2CPX039216R9999Alt SKU: ED18MPN: 2CPX039216R9999
Price
List Price £44.34 ex VAT
Your Price (ex VAT)
£44.34
Manufacturer Lead Time Estimated Delivery 5 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £44.34
Trade pricing is personalised to your account

Manufacturer Lead Time

£44.34

Why Choose the ABB ED18 EDF Vertical Profile Rail 12RE?

The ABB ED18 is a vertical EDF profile rail designed for constructing compatible ABB CombiLine distribution assemblies. With a height capacity of 12 RE and an overall rail length of 1800 mm, it provides the vertical supporting structure required for mounting system components within the EDF mounting frame.

As part of the ABB CombiLine interior expansion system, the ED18 is specifically intended for free arrangement installations where touch-protection covers need to be supported. The vertical profile integrates with the EDF mounting frame and provides a structured foundation for professional low-voltage distribution-board construction.

The ED18 is manufactured from metal with a galvanised surface and is designed for vertical screw mounting. It is supplied as an unassembled kit with the required fastening screws, helping simplify installation while maintaining compatibility with ABB's coordinated distribution system.

Key Advantages

  • Purpose-designed vertical EDF profile rail for ABB CombiLine assemblies.
  • 12 RE / 1800 mm height for larger distribution-board configurations.
  • Designed to support touch-protection covers in free arrangement installations.
  • Compatible with the ABB EDF mounting frame.
  • Durable metal construction with a galvanised surface.
  • Supplied with fastening screws for straightforward system installation.

Key Features

  • ABB ED18 vertical EDF profile rail.
  • Part of the ABB CombiLine interior expansion system.
  • 12 RE height configuration.
  • 1800 mm rail length.
  • 20 mm profile height.
  • Designed for vertical installation.
  • Screw-fixed mounting.
  • Metal construction with galvanised surface treatment.
  • Suitable for the EDF mounting frame.
  • Supplied as an unassembled kit including fastening screws.
  • ABB order code 2CPX039216R9999.

Reliable Structural Support for CombiLine Distribution Systems

Vertical profile rails form an important part of modular distribution-board mounting structures by providing defined attachment points for system components and protective covers. A correctly matched profile rail helps create a stable, organised internal framework while allowing distribution equipment to be arranged according to the requirements of the installation.

The ABB ED18 provides an 1800 mm vertical support for 12 RE CombiLine configurations. Its compatibility with the EDF mounting frame, galvanised metal construction and supplied fastening screws make it a practical system component for building professional ABB low-voltage distribution assemblies with free internal arrangement.

Typical Applications

  • ABB CombiLine distribution assemblies.
  • EDF mounting frame construction.
  • Subdistribution boards.
  • Free arrangement distribution-board installations.
  • Support for touch-protection covers.
  • Commercial and industrial low-voltage distribution cabinets.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Mounting / Expansion Module
Product Series S&J CombiLine N
Series CombiLine
ABB order code 2CPX039216R9999
Product type Vertical EDF profile rail
Height units 12 RE
Length 1800 mm
Profile height 20 mm
Material Metal
Surface Galvanised
Installation orientation Vertical
Mounting method Screw mounting
Compatible system EDF mounting frame
Application Supporting touch-protection covers during free arrangement
Delivery form Unassembled kit
Fastening screws Included
Product group DESUJ Sub Distribution
Package quantity 1 piece

Frequently Asked Questions

What is the ABB ED18 used for?

The ABB ED18 is a vertical EDF profile rail used within compatible CombiLine distribution assemblies, including for supporting touch-protection covers in free arrangement installations.

What is the height of the ABB ED18?

The ED18 is designed for 12 RE configurations and has an overall rail length of 1800 mm.

Which mounting system is compatible with the ABB ED18?

The ED18 is designed for use with the ABB EDF mounting frame as part of the CombiLine interior expansion system.

Are fastening screws included with the ABB ED18?

Yes. The ED18 is supplied as an unassembled kit and includes fastening screws for installation.

What is the ABB order code for the ED18?

The ABB order code for the ED18 vertical EDF profile rail is 2CPX039216R9999.

Trusted ABB Distribution System Components

ABB CombiLine components such as the ED18 provide a coordinated structural framework for professional low-voltage distribution assemblies, supporting organised installation, touch protection and flexible internal equipment arrangements.
