Why Choose the ABB ED54 DIN Rail 4PW?

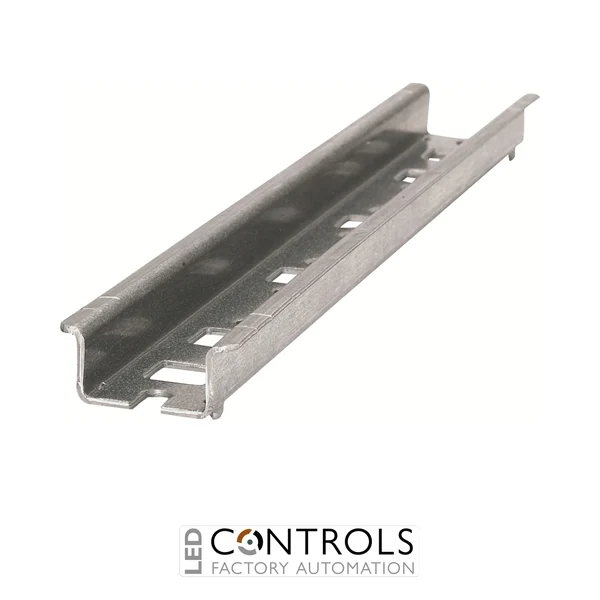

The ABB ED54 is a robust 35 × 15 mm DIN mounting rail designed for professional low-voltage electrical distribution assemblies. As part of the ABB DESUJ Sub Distribution range, it provides a dedicated mounting solution for compatible ABB EDF and WR mounting-frame systems.
Designed for a 4-panel-width (4PW) configuration, the ED54 has a nominal rail length and external width of 938 mm. It is intended for installation between compatible EDF and WR mounting frames and incorporates a hole pattern for ABB ED44 and ED45 wire holders.
The ED54 is manufactured from 1.5 mm steel with a Sendzimir-galvanised surface for durable use within electrical distribution equipment. Its 35 × 15 mm profile provides a structured mounting platform for compatible panel equipment, while ABB order code 2CPX039254R9999 ensures precise product identification.
Key Advantages
- Purpose-designed DIN rail for ABB electrical distribution assemblies.
- 4-panel-width (4PW) configuration for larger panel layouts.
- 938 mm nominal external width.
- Standard 35 × 15 mm DIN rail profile.
- Designed for installation between compatible EDF and WR mounting frames.
- Hole pattern supports compatible ABB ED44 and ED45 wire holders.
Key Features
- ABB DESUJ Sub Distribution accessory.
- ED54 DIN mounting rail.
- 4PW configuration.
- 35 × 15 mm rail profile.
- 938 mm nominal external width.
- 1.5 mm material thickness.
- Steel construction with Sendzimir-galvanised surface.
- Designed for compatible EDF and WR mounting frames.
Reliable Mounting for Electrical Distribution Equipment
DIN rails provide a structured mechanical mounting platform for compatible electrical devices and accessories within distribution boards and control panels. Correctly sized rails help panel builders arrange equipment consistently while supporting efficient assembly, wiring and subsequent maintenance.
The ABB ED54 is specifically configured for 4PW distribution layouts. Its 938 mm width, durable steel construction and compatibility with EDF and WR mounting frames make it a practical component for professional ABB low-voltage distribution assemblies.
Typical Applications
- Low-voltage electrical distribution boards.
- ABB subdistribution assemblies.
- 4PW distribution panel configurations.
- EDF and WR mounting-frame systems.
- Commercial and industrial electrical panels.
- Professional switchboard and panel construction.
