Why Choose the ABB ED161 T1/T2 Mounting Plate?

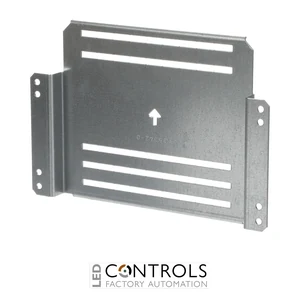

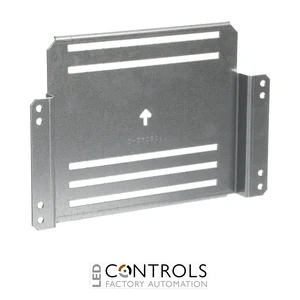

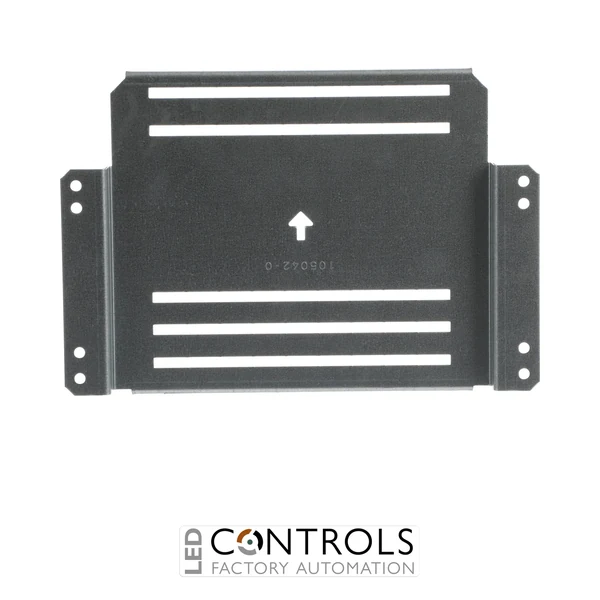

The ABB ED161 (2CPX039311R9999) is a dedicated mounting plate / mounting cross-member for ABB T1 and T2 moulded-case circuit breakers, designed for installation within compatible low-voltage distribution assemblies. Part of the ABB DESUJ Sub Distribution product group, it provides the mechanical mounting interface required to integrate supported T1 and T2 switching devices into suitable distribution enclosures.
With nominal dimensions of 246 × 170 × 28 mm, the ED161 provides a compact mounting solution for compatible small distribution boards. ABB documentation identifies the accessory for T1 and T2 switches, while ABB distribution-system literature also specifies the ED161 as a mounting kit for the Tmax XT1 up to 125 A in compatible enclosure applications.
The ED161 is supplied as a complete single mounting accessory and is intended for system-compatible installation rather than universal panel mounting. Its predefined dimensions and mounting arrangement help panel builders position supported ABB switching equipment correctly within compatible distribution-board configurations.
Key Advantages
- Dedicated mounting solution for compatible ABB T1 and T2 switches.
- Suitable for compatible ABB Tmax XT1 applications up to 125 A.
- Designed specifically for compatible small distribution boards and enclosure systems.
- Compact 246 × 170 × 28 mm nominal dimensions.
- Provides a defined mechanical mounting interface for supported switching devices.
- System-specific design simplifies integration into compatible ABB assemblies.
- Suitable for professional low-voltage panel and distribution-board construction.
- Supplied individually as a complete mounting accessory.
Key Features
- ABB ED161 mounting plate / mounting cross-member.
- Designed for compatible T1 and T2 switching devices.
- Suitable for compatible Tmax XT1 circuit breakers up to 125 A.
- 246 mm nominal width.
- 170 mm nominal height.
- 28 mm nominal depth.
- Designed as a mounting accessory for electrical distribution enclosures.
- Suitable for compatible small distribution-board applications.
- Part of ABB's low-voltage distribution accessory portfolio.
- Supplied as 1 piece.
System-Compatible Mounting for ABB T1 and T2 Switching Devices
Correct mechanical mounting is essential when integrating moulded-case circuit breakers and switching devices into electrical distribution enclosures. The ABB ED161 provides a purpose-designed mounting interface for compatible T1 and T2 devices, helping panel builders position the switching equipment securely within supported distribution-board configurations.
Its compact 246 × 170 × 28 mm construction makes the ED161 particularly suitable for compatible small distribution enclosures. For applications involving ABB's Tmax range, the mounting accessory is specified for compatible XT1 installations up to 125 A, providing a dedicated alternative to fabricating a generic mounting arrangement.
Typical Applications
- ABB T1 and T2 switch mounting.
- Compatible ABB Tmax XT1 installations up to 125 A.
- Moulded-case circuit breaker mounting.
- Small electrical distribution boards.
- Low-voltage sub-distribution assemblies.
- Commercial electrical distribution cabinets.
- Industrial electrical distribution installations.
- Professional switchboard and panel-building applications.
