Why Choose the ABB ED2 DIN Rail 2PW?

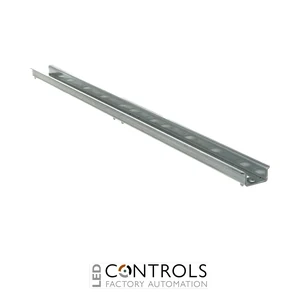

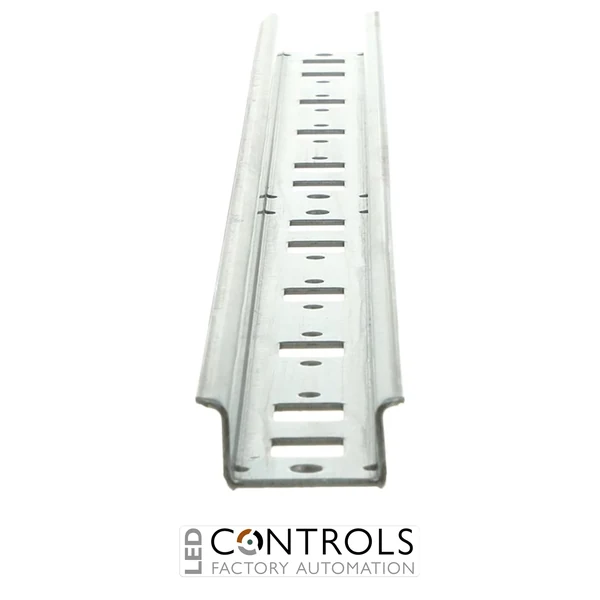

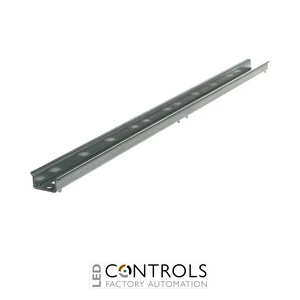

The ABB ED2 is a robust DIN mounting rail designed for installing modular electrical devices within compatible ABB sub-distribution assemblies. Supplied under ABB order code 2CPX039382R9999, the ED2 is a 2-field-width rail intended for mounting directly onto compatible EDF and WR mounting frames.
The ED2 uses the standard 35 × 15 mm DIN rail profile and has a length of 494 mm. Its 2PW / 2-field-width format provides a practical mounting platform for compatible DIN rail equipment across a wider distribution field, supporting organised and space-efficient panel construction.
A dedicated hole pattern is provided for compatible ABB ED44 and ED45 wire holders, helping panel builders coordinate device mounting and cable management within the assembly. The ED2 is supplied as a single rail and forms part of ABB's DESUJ Sub Distribution system components.
Key Advantages
- Purpose-designed DIN rail for ABB sub-distribution assemblies.
- 2PW / 2-field-width configuration for wider modular equipment layouts.
- Standard 35 × 15 mm DIN rail profile.
- 494 mm rail length for compatible two-field mounting arrangements.
- Designed for assembly directly onto compatible EDF and WR mounting frames.
- Dedicated hole pattern supports compatible ED44 and ED45 wire holders.
Key Features
- ABB ED2 DIN rail.
- 2PW / 2-field-width format.
- 35 × 15 mm DIN rail profile.
- 494 mm overall rail length.
- Wide rail 1 configuration for assembly on the mounting frame.
- Compatible with suitable ABB EDF and WR mounting frames.
- Hole pattern for ABB ED44 / ED45 wire holders.
- Designed for modular electrical distribution equipment mounting.
- Supplied as 1 piece.
- ABB order code 2CPX039382R9999.
Reliable DIN Rail Mounting for Modular Distribution Equipment
DIN rails provide a standardised mechanical interface for installing modular protective, switching and control devices within electrical distribution equipment. The ABB ED2 combines the widely used 35 × 15 mm profile with a 494 mm two-field-width format, providing a secure mounting platform within compatible ABB distribution assemblies.
Designed for installation on compatible EDF and WR mounting frames, the ED2 also incorporates a hole pattern for ABB ED44 and ED45 wire holders. This enables panel builders to combine device mounting with coordinated cable organisation when constructing professional modular distribution systems.
Typical Applications
- ABB sub-distribution boards.
- EDF and WR mounting-frame assemblies.
- Modular low-voltage distribution panels.
- DIN rail-mounted protective device installation.
- Switchgear and electrical panel construction.
- Distribution assemblies using ED44 or ED45 wire holders.
