Why Choose the ABB ZW12 Profile Rail 2PW?

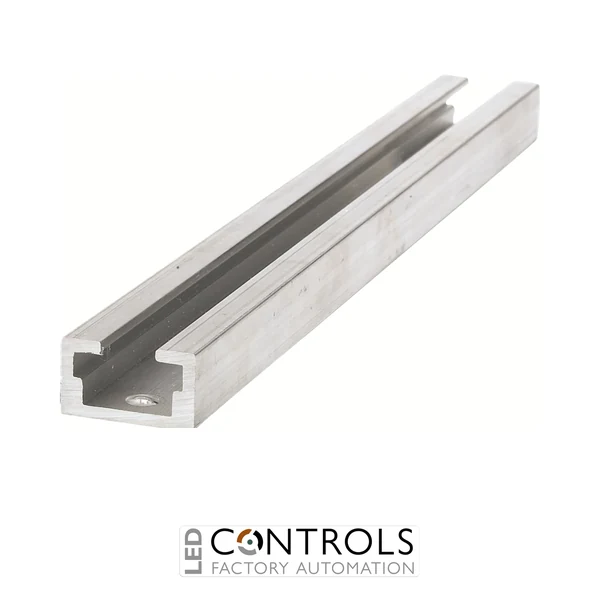

The ABB ZW12 is an aluminium profile rail designed for mounting onto compatible EDF or WR mounting frames within ABB electrical distribution assemblies. Configured for a 2-field-width (2PW) installation, it provides a robust horizontal support for constructing organised internal mounting structures in subdistribution boards.
The ZW12 uses ABB profile No. 1, with a profile cross-section of 25 × 14 mm and Ø 6.2 mm mounting holes. Its aluminium construction combines structural support with low weight, while screw fixing provides a secure connection to the mounting frame.
With a nominal rail length of 494 mm, the ZW12 is classified as ABB Wide Rail 1 and is specifically intended for assembly directly onto the mounting frame. This coordinated design makes it suitable for professional ABB subdistribution installations requiring a two-field-wide internal support rail.
Key Advantages
- Purpose-designed profile rail for ABB EDF or WR mounting frames.
- 2-field-width (2PW) format for compatible distribution assemblies.
- Strong and lightweight aluminium construction.
- 494 mm rail length for two-field-wide mounting arrangements.
- Profile No. 1 with a compact 25 × 14 mm cross-section.
- Screw-fixed installation provides secure attachment to the mounting frame.
Key Features
- ABB ZW12 profile rail.
- Wide Rail 1 configuration for assembly on the mounting frame.
- 2-field-width / 2PW design.
- 494 mm nominal length.
- Profile No. 1.
- 25 × 14 mm aluminium profile.
- Ø 6.2 mm mounting holes.
- Screw-fixed mounting method.
- Designed for compatible EDF or WR mounting frames.
- ABB order code 2CPX039412R9999.
Reliable Structural Support for Distribution Assemblies
Profile rails provide the supporting framework required to arrange components securely within modular electrical distribution boards. Using a rail matched to the mounting-frame system helps maintain consistent positioning, mechanical stability and an organised internal layout for installation and servicing.
The ABB ZW12 is specifically configured as a two-field-wide rail for direct installation onto compatible EDF or WR mounting frames. Its 494 mm aluminium profile and Ø 6.2 mm mounting holes provide a coordinated mechanical support solution for professional ABB low-voltage distribution assemblies.
Typical Applications
- ABB subdistribution boards.
- EDF mounting frame assemblies.
- WR mounting frame assemblies.
- Two-field-wide internal mounting structures.
- Commercial low-voltage distribution cabinets.
- Industrial electrical distribution assemblies.
