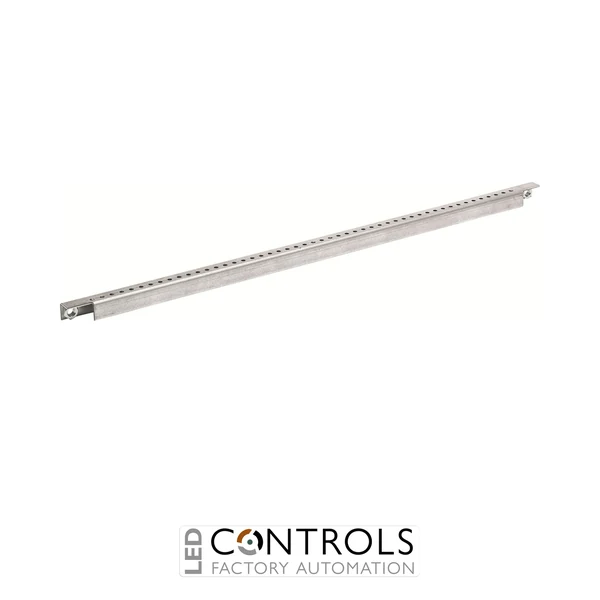

2CPX039448R9999 ABB ZW48 Top/Bottom Support Rail 4PW 995 mm

2CPX039448R9999 ABB ZW48 Top/Bottom Support Rail 4PW 995 mm

ABB ZW48 is a 995 mm four-panel-width galvanised steel top or bottom support rail designed for compatible EDF WNF and ABB TriLine electrical distribution and switchgear assemblies.

SKU: 2CPX039448R9999Alt SKU: ZW48MPN: 2CPX039448R9999
Price
List Price £30.00 ex VAT
Your Price (ex VAT)
£30.00
Manufacturer Lead Time Estimated Delivery 6 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £30.00
Trade pricing is personalised to your account

Manufacturer Lead Time

£30.00

Why Choose the ABB ZW48 Top/Bottom Support Rail 4PW?

The ABB ZW48 is a purpose-designed top or bottom support rail for use within compatible ABB electrical distribution and switchgear assemblies. Designed for a 4-panel-width (4PW) configuration, it provides a rigid structural mounting element for larger EDF installation arrangements.

With an overall length of 995 mm, the ZW48 is designed as a system component for the EDF installation set WNF and is suitable for compatible ABB TriLine® switchgear cabinets. The rail can be positioned at either the top or bottom of the corresponding installation structure, providing a coordinated mechanical support solution.

The ZW48 is manufactured from steel with a galvanised surface and features a support-rail profile height of 19 mm. Its screw-fixed mounting arrangement provides secure mechanical attachment, making it suitable for professional low-voltage distribution and switchgear construction.

Key Advantages

  • Purpose-designed top or bottom support rail for ABB distribution assemblies.
  • 4-panel-width (4PW) format for wider installation structures.
  • 995 mm overall length for four-field-wide arrangements.
  • Durable steel construction for dependable structural support.
  • Galvanised surface finish for the metal rail.
  • Screw-fixed installation provides secure integration with the compatible mounting system.

Key Features

  • ABB ZW48 top/bottom support rail.
  • Designed for 4PW / 4-panel-width assemblies.
  • 995 mm nominal length.
  • 19 mm support-rail profile height.
  • Manufactured from steel.
  • Galvanised surface.
  • Screw-fixed mounting.
  • Designed for the EDF installation set WNF.
  • Suitable for compatible ABB TriLine® switchgear cabinets.
  • Supplied as 1 piece.
  • ABB order code 2CPX039448R9999.

Reliable Structural Support for Distribution Assemblies

Support rails provide important mechanical reinforcement within modular electrical distribution and switchgear assemblies. Using a rail matched to the required field width helps maintain the intended mounting geometry and provides a stable foundation for the corresponding installation structure.

The ABB ZW48 provides a 995 mm support rail for four-panel-wide EDF WNF configurations. Its steel construction, galvanised finish and screw-fixed mounting make it a practical structural component for compatible ABB TriLine® cabinets and professional low-voltage distribution installations.

Typical Applications

  • ABB TriLine® switchgear cabinets.
  • ABB subdistribution assemblies.
  • EDF installation set WNF mounting structures.
  • Four-panel-wide distribution configurations.
  • Top support rail installations.
  • Bottom support rail installations.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Mounting / Expansion Module
Product Series S&J CombiLine N
ABB order code 2CPX039448R9999
Product type Top / bottom support rail
Field width 4PW / 4-panel width
Length 995 mm
Profile height 19 mm
Material Steel
Surface finish Galvanised
Mounting method Screw fixing
Position Top or bottom
Compatible installation system EDF installation set WNF
Compatible cabinet system ABB TriLine®
Continuous adjustment No
Product group DESUJ Sub Distribution
Package quantity 1 piece

Frequently Asked Questions

What is the ABB ZW48 used for?

The ABB ZW48 is a top or bottom support rail used as a structural system component in compatible four-panel-wide ABB electrical distribution and switchgear assemblies.

What field width is the ABB ZW48 designed for?

The ZW48 is designed for a 4-panel-width (4PW) installation configuration.

What is the length of the ABB ZW48?

The ABB ZW48 has a nominal length of 995 mm.

What material is the ABB ZW48 manufactured from?

The ZW48 is manufactured from steel and has a galvanised surface finish.

Which installation system is the ABB ZW48 designed for?

The ZW48 is designed as a system component for the EDF installation set WNF and is suitable for compatible ABB TriLine® switchgear cabinet arrangements.
